Description
Product Description

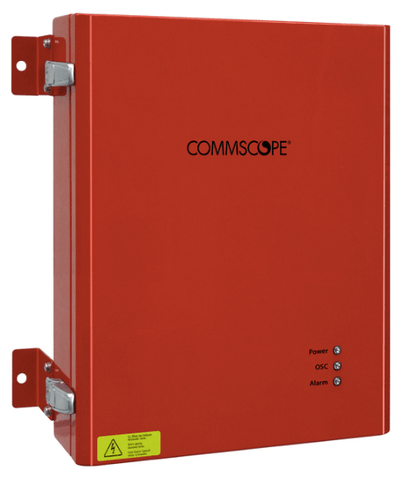

Public Safety BDA, Class A, 2 Watt, DC Powered, Dualband 700 and 800 MHz.
CommScope 7831758-0021 Specs.:
- Dual band.
- Class A.
- 32 channels.
- Public safety BDA model 78317580021, UPC 888063933035.
- Support for frequencies of both 700 and 800 megahertz.
- Full support for Band 14 (FirstNet).
- Supports standard analog and P25 digital frequencies.
- Powered by -48 volts DC.
- Utilizing output and input connections between 4.3 and 10.
- Fully complaint with UL2524 and NFPA.
- Composite downlink power of 33 dBm (2 watts).
- Providing gain of 90 decibels.
Product Benefits:
- Signal source for public safety that is economical, high performing, and compact.
- Full compliance with all necessary specifications for public safety.
- Support for as many of 32 channels for each band thanks to the digital architecture that is high performing and fully programmable.
- Between 0.5 watts and 2 watts of output power.
- Ensure clear and strong voice communication by way of the uplink squelch channelization and AGC (automatic gain control).
- Use a license key to upgrade your band capacity and output power as needed.
- Achieve intelligent monitoring and configuration with web-based SNMP and GUI support.
Category:
RF public safety repeater unit.
Broad Description:
- Repeater 4.3 to 10 antenna interface.
- Optional inside omnidirectional antenna with 4 dBi gain sold separately.
- Typical values of performance node unless stated differently.
- Features remove ethernet for control and supervision to alarm contacts.
Measurements and Packaging:
- 18.898 inches high (480 millimeters).
- 15.748 inches wide (400 millimeters).
- 3.543 inches long optional antenna (90 millimeters).
- 6.693 inches depth (170 millimeters).
- 41.888 lbs. net (19 kilos).
Electrical Specs.:
- 13 dB return loss.
- Fully compliant with United States FCC part 90, part 20, UL 62368, UL 2524, and Electrical Safety Standards number 62368-1, CSA-C22.2/CAN.
- 90 dB gain.
- 30 dB range of gain adjustment.
- Maximum group delay of 90 µs at 12.5 kilohertz and 3 µs at full band.
- Including FirstNet, 700, 800 license band.
- -48 volts DC local power.
- 160 watts power consumption.
Uplink Rx Electrical Specs.:
- FirstNet Frequency Band for Operation between 788 and 798 Megahertz, between 788 and 805 Megahertz, and between 796 and 824 Megahertz.
- One carrier output capability of 27 dBm.
- Two carrier output capability of 24 dBm.
Downlink Tx Electrical Specs.:
- FirstNet Frequency Band for Operation between 758 and 768 Megahertz, between 758 and 775 Megahertz, and between 851 and 869 Megahertz.
- One carrier output capability of 33 dBm.
- Two carrier output capability of 30 dBm.
Compliance and Environmental Specs.:
- Temperature between -22 degrees Fahrenheit and +122 degrees Fahrenheit (-30 degrees Celsius to +50 degrees Celsius).
- Tested with ingress method IP66, NEMA 4X, IEC 60529:2001.
- Distributed, manufactured, and designed in accordance with ISO 9001:2015.
CommScope 7831758-0021 Data Sheet.
About CommScope:
By applying its renowned industrial know-how, CommScope continues to exceed all expectations when it comes to communications technologies. Everywhere on the planet, their solutions are rethinking connectivity, building the innovation to shape tomorrow, and deciphering the challenges of today. In 2019, CommScope bought RUCKUS and ARRIS. The united corporations produce solutions, employee capabilities, and improved innovation, with greater access to new and emerging opportunities. This consolidation established a communications corporation with unrivaled depth, breadth, and capacity.
About SignalBooster.com:
In structures, in the ground, or through the air, SignalBooster.com accepts that wireless networks must be tough and stable, yet also able to evolve to meet the needs of this ever-connected environment. Their solutions have years of experience with wireless connectivity and can bring the excellence, innovation, and resilience that companies must have in order to answer the increasing expectations and demands of consistent wireless communications. We’re responsible for shaping the communication systems of the future.
About CommScope & SignalBooster.com:
Starting with material design to solving the most obscure of composition or bandwidth problems, SignalBooster.com delivers unparalleled expertise in copper, fiber, and wired and wireless groundwork that underpins today's wireless networks and makes ready the networks of tomorrow. Enabling 5G, private communications networks, and Gigabit speeds everywhere, we’re constantly forecasting what is to come for ensuring you're always ahead. SignalBooster.com's Public Safety DAS design and installation service can bring CommScope technology into your business property effectively ensuring constant connectivity as required by the local Authority Having Jurisdiction (AHJ).
WARNING:
Per FCC laws and regulations, INDUSTRIAL GRADE distributed antennas system (Fiber DAS) master and/or remote units must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please submit public safety DAS installation service questionnaire for a quote if you require professional installation and assistance with consent and approval process.
