Description
Product Description
Smooth-Talker High Power Stealth Z6 72 dB (USA version) or 70 dB (Canada version) Building Cell Phone Signal Booster With Omni Interior "Blade" Antenna, and Uni-Directional "Panel" Exterior Antenna. SmoothTalker Stealth Z670 70 dB (Canada) or Z672 72 dB (USA) covers up to 12,000 square feet in urban areas where cell towers are up to 15 miles away.
This is the new 6-band version of the previous SmoothTalker Stealth Z1 Dual Band amp. kit. It boosts mobile reception for 6 bands covering all cellular phone service carrier networks in USA & Canada! We will ship appropriate version depending upon your shipping address in USA or Canada.
Compared to other competing brands in the market, SmoothTalker Z-6 / Z-672 kit offers higher output power worldwide for both TX and RX transmissions / uplink (UL) and downlink (DL) wireless transfers. Best quality and performance - Made in Canada. Designed, assembled, manufactured in Canada. Buy Canadian.
Complete cell phone booster kit includes everything required to fully install in your home, condo/ apartment, or office space. This cellular amplifier kit part # is SmoothTalker BBCZ670XBP (with MCT Connector) and BBCZ670GBP (with F Connector). After installing this premium quality indoor signal amplifying product, take advantage of strong boosted cellphone signal strength for constant wireless connectivity and safety. Industry Canada IC ISED Approved, and Certified by FCC.

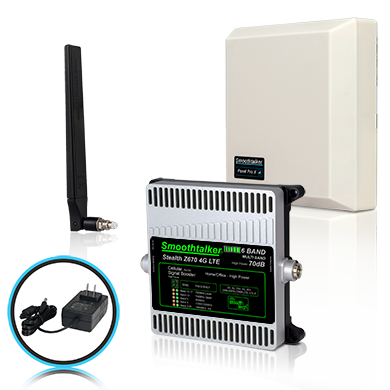

SmoothTalker BBUZ672XBP or BBCZ670XBP (with MCT Connector) In-Building Cell Booster/ Amplifier Kit Includes:
- SmoothTalker Stealth Z6 "X" Amp Only - 72 or 70 dB 6-Band 3G 4G LTE High Power Wireless Booster, Amplifier, Repeater. SKU: BBUZ672XAA or BBCZ670XAA, respectively.
- Internal on-Amplifier "Blade Antenna" with MCT connector. It is to be mounted or attached on "inside antenna" connector located on the booster. SKU: SRBL1.
- External "Panel Antenna" (One Directional) with MCT female connector is a weather resistant wide-band 680 MHz to 2700 MHz antenna with 180° beam-width recommended for outdoor use. It can be mounted to wall, ceiling and inside of window when external placement of antenna is not possible. It has MCT Female connector and is to be used with building boosters that have an "X" in the SKU. Optional pole mounting kit required for mounting this antenna to a pole. SKU: SEMDP1XL.
- 120V Wall Power Supply Charger or Adapter. Input: 100-240 Volts. Output: 6 Volts. Current Rating: 3.0 Amps. SKU: DCH6HV.
- Quantity 2 of the 30 feet Quad Shield C205 Coaxial Cable with pre-installed weather proof MCT Male to MCT Female Connector. It is all weather outdoor rated .205 inches diameter cable. It has solid copper center conductor. It has 2 layers copper braid and 2 layers aluminum foil shielding. It is tested to 2.1 GHz. SKU: CBXMAXFE30.
SmoothTalker BBUZ672GBP or BBCZ670GBP (with F Connector) In-Building Cell Booster/ Amplifier Kit Includes:
- SmoothTalker Stealth Z6 "F" Amp Only. 72dB (USA) or 70dB (Canada) 6-Band 3G 4G LTE High Power Wireless Booster, Amplifier, Repeater. SKU: BBUZ672GAA (USA) or BBCZ670GAA (Canada).
- Interior on-Amplifier Blade Antenna with MCT connector. It is to be mounted or attached on "inside antenna" connector located on the booster. SKU: SRBL1.
- Exterior Panel Antenna (Uni-Directional) with F female connector is a weather resistant wide-band 680 MHz to 2700 MHz antenna with 180° beam-width recommended for outdoor use. It can be mounted to wall, ceiling and inside of window when external placement of antenna is not possible. It has "F" Female connector and is to be used with building boosters that have a "G" in the SKU. Optional pole mounting kit required for mounting this antenna to a pole. SKU: SEMDP1GL.
- 120V Wall Power Supply Charger or Adapter. Input: 100-240 Volts. Output: 6 Volts. Current Rating: 3.0 Amps. SKU: DCH6HV.
- Quantity 2 of the 30 feet Pro-X Outdoor Low Loss RG6 Coaxial Cable with pre-installed weather proof knurled connectors - "F" Male connector on one end and "F" Female Connector on other. No tools required to tighten connectors. It is tested to 3 GHz. SKU: CBGMAGFE30.
Features:
- 70 dB Gain high power multi-user amplifier boosts reception to 12,000 sq. ft. of inside building or any enclosed structure spaces.
- Self regulating. Easy to install. No maintenance required.
- Connects to wireless networks up to 15 miles (30 kilometers) from the nearest wireless tower.
- Improves voice call quality by reducing noise, and increases 3G & 4G LTE data speed for all wireless devices such as cellphones, mobile hotspots, tablets.
- Rugged housing for durability & reliability.
- Industry Canada IC ISED Approved for Canadian signal booster installers.
- FCC Certified for USA signal booster installers.
- Reduces Dropped Calls.
- Improves Device Battery Life.
- Helps Multiple Users & Devices Simultaneously.
- Extends Cellular Coverage While Being Network Friendly.
- Increase Data Speeds up to 30 times.
- User Guide & Installation Manual included with all required instructions to install properly.
- Smooth-Talker StealthTech Technology.*
- Maximum Transmit (TX) & Receive (RX) Signal Boost.**
- Industry leading 3 Years Warranty with proof of purchase when purchased at SignalBooster.com.
* SmoothTalker Stealth-Tech Technology is a proprietary technology that adjusts gain dynamically in a fixed environment. Built-into this intelligent cellular coverage extender, it provides automatic gain AND oscillation control that make these signal amps very network friendly. It provides the tower the best signal but also provides the best call experience for consumers as well. Stealth-Tech technology also makes signal repeater installation easier than any other brand repeater in the market.
** Built-in technology that provides maximum TX & RX signal boost in a network friendly manner, without causing disruption to service provider networks. Purest TX power and signal purity gives the BEST voice connection and HIGHEST RATE data connection.
Covers Six Frequency Bands:
- 700MHz, Band 12.
- 700MHz, Band 17.
- 700MHz, Band 13.
- 800MHz, Band 5.
- 900MHz, Band 2/25.
- 2100MHz, Band 4.
This 2G, 3G, 4G, LTE cell phone amplifier kit covers the following mobile wireless frequency bands: Bands 12 & 17 (Lower 700 MHz), Band 13 (Upper 700 MHz), Band 5 (850 MHz), Bands 2 & 25 (1900 MHz), Band 4 (AWS 1700/ 2100 MHz).
Note: All USA & Canadian frequencies are supported (USA Carriers AT&T Wireless, Verizon, T-Mobile, Sprint, etc., and Canadian Carriers Bell Canada, Telus Mobility, Rogers Wireless, Freedom Mobile, etc.) except Sprint bands 26 (lower 800 MHz) and band 41 (2500 MHz) which may be used in very few areas in USA. If you have Sprint wireless service, please check with Sprint to ensure they do not use the two specific frequencies as stated above, within your area. If they do, this six band indoor cell phone signal amplifier kit will unfortunately not work for you.
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
