Cel-Fi QUATRA 1000 Active DAS Hybrid Cellular Solution for AT&T
Cel-Fi QUATRA 1000 Active DAS Hybrid Cellular Solution for AT&T
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: Q34-2/5/4/12 NU_EXA + 4 x Q34-2/5/4/12 CU_EXA
Cel-Fi Quatra is a custom designed in-building enterprise cellular system. It is a hybrid active Distributed Antenna System (DAS) that boosts coverage.
- Up to 100 dB Active DAS Hybrid (1000x Stronger).
- Single or Multi-Carrier Solution.
- 3G / 4G / LTE for Voice and Data.
- Carrier-Approved and Unconditionally Network Safe.
- Scalable All-Digital PoE Cat5e Solution for Middleprise.
- Remote Monitoring and Management via WAVE Platform.
- Certifications: FCC, CE_RED, ISED, cETL, ETL, CE, ICASA, SRRC, NAL, RCM.
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Data Sheet / User Guide
- Make An Offer
- Warning
Description
Product Description
Cel-Fi QUATRA 1000 for AT&T Wireless network is an in-building cellular distributed antenna system typically used in enterprises. This hybrid cell phone signal booster and small cell signal enhancing system is easy-to-deploy and cost-efficient. It is typically used as a signal solution for buildings up to 200,000 square feet. This signal amplifier model only boosts 3G, 4G, LTE voice and data on the AT&T network.
This hybrid solution combines the best of Smart Booster and active DAS technologies. It is self-optimizing and self-configuring, while installation and configuration is made simple by the Cel-Fi WAVE Portal. Network unit (qty. 1) part # Q34-2/5/4/12 or Q34-2/4/5/12 NU_EXA. Coverage unit (qty. 4) part # Q34-2/5/4/12 or Q34-2/4/5/12 CU_EXA.
QUATRA 1000 Off-Air installation configuration / set-up.
Example below is an illustration showing a single QUATRA 1000 system, connected to the Wideband MIMO Panel Antenna, with a single QRE deployed, and four (4) Coverage Units (CU). Each QUATRA 1000 system supports one carrier such as this product listing for T-Mobile frequency programmed Network and Coverage units.
QUATRA 1000 Small Cell installation configuration / set-up.
Cel-Fi WAVE Platform cloud-based remote management platform enables device maintenance and management. Key features of the WAVE platform include:
- Cel-Fi device and asset management.
- Mobile and desktop applications.
- Data modeling and reporting.
- Alerts and alarms can be customized.
- Globally trusted carrier-grade security.
- The WAVE Platform portal can be accessed through its own dashboard, or integrated via APIs.
The QUATRA is scalable and can be used to cover up to 200,000 square feet. It either operates in off-air mode, or it can be integrated with small cell equipment. In the latter case, it operates in distributed small cell mode and creates a Supercell.
Networked Booster Configuration.
This configuration uses capacity from a cell network's existing coverage, extending it to where required. This configuration uses the Network Unit's internal antennas, and is ideal for rural areas where the Network Unit can be located where there is a good donor signal. For urban areas where network interference is often a problem, the Network Unit may be connected to a directional high gain antenna.
Distributed Small Cell Configuration.
A small cell is used as the donor signal for the Cel-Fi QUATRA in the Distributed Small Cell Configuration. This facilitates a uniform signal distribution through a large area. Additional Cel-Fi QUATRA systems may be used to increase coverage up to 200,000 square feet per small cell.
System Components:
Network Unit (NU).
The hub of the system is the QUATRA Network Unit (NU). Its scalable design can work with between 1 and 4 Coverage Units (CU) to cover up to 50,000 square feet. The NU provides the donor signal to system and supplies power to up to 4 CUs (Coverage Units). It can be managed by the WAVE Platform.
Coverage Unit (CU).
The remote radio head of the system that rebroadcasts the donor signal is called the Coverage Unit (CU). Each CU provides coverage in the QUATRA system, with up to 4 per NU. Each CU is powered from the NU by Power-Over-Ethernet (POE).
Small Cell Interface.
The Small Cell Interface (SCIF) is needed for small cell installation. It simplifies RF connections between NUs and a small cell. It consists of a main unit and the cables needed for a single NU.
Range Extender (QRE).
The Range Extender is a Power over Ethernet (PoE) device that extends the maximum distance between the NU and a CU. It permits cable lengths of up to 650 ft. (200 meters).
Cel-Fi MIMO Panel Antenna.
The MIMO Panel Antenna is a dual-polarization LTE MIMO antenna for pole, ceiling, or wall mount installations, with a gain of between 6.5 and 9 dBi. The MIMO Panel Antenna is used for off-air installation of multiple CUs.
The Cel-Fi MIMO Panel Antenna is integrated with the Cel-Fi WAVE Platform via Cel-Fi's AntennaBoost. This antenna can connect to any MIMO-enabled CU or NU with quick connect (QMA) cables. This antenna can be rotated in 45-degree steps for best performance with the 8-position dial base. This process is managed with real-time data from the Cel-Fi WAVE Platform Antenna Position Test function.
Coverage.
The coverage area achieved by a signal booster depends on the signal strength outside the building.
| Outdoor Signal | Estimated coverage area |
|---|---|
| Strong (5 bars) | up to 50,000 square feet |
| Medium (3-4 bars) | up to 25,000 square feet |
| Weak (1-2 bars) | up to 10,000 square feet |
This model only supports AT&T at the following frequencies:
698-716 / 728-746 / 824-849 / 869-894 / 1850-1910 / 1930-1990 /1710-1755 / 2110-2155 MHz.
This booster supports 2G/3G Voice and Data, as well as 4G LTE. Connector type: QMA Female. Cable type: Ethernet.
Note that this model Cel-Fi QUATRA Hybrid Signal Booster and Active DAS for AT&T Wireless can only boost signal for AT&T network. If users in the building use multiple networks, you will need multi-carrier booster such as these: Small Space Signal Boosters for up to 4000 sq. ft., Medium Space Signal Boosters for up to 7000 sq. ft., Large Space Signal Boosters for up to 20,000 sq. ft., or Very Large Area Signal Boosters for up to 100,000 sq. ft.

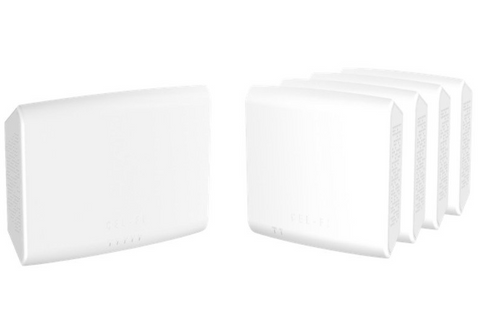

Contents (Parts) Included in this Cel-Fi Commercial and Industrial Grade Signal Enhancing Kit.
- Main Network Unit Model # NU_EXA with Part # Q34-2/5/4/12.
- Quatity 4 of Coverage Unit Model # CU_EXA with Part # Q34-2/5/4/12.
Cel-Fi Quatra is a custom signal enhancing solution that consists of tiered equipment cost depending upon equipment required based on building construction design (or blueprint if available) and respective professional installation cost of that equipment. Therefore, the pricing varies greatly so we're very sorry we cannot provide even a rough equipment cost estimate and installation timeframe. Please submit location details at following link to begin process of determining an exact installation quote with installation time-frame: https://www.signalbooster.com/pages/commercial-installation-questionnaire
We look forward to maximizing wireless reception for you, at minimal cost possible. Please note that alteration in above standard kit will be required to ensure full coverage at the most cost effective price point. Please submit details at link above or please contact us for custom designing and installing this kit that requires professional installation by certified installers. We provide installations nationwide across United States for this and other cellular signal enhancing systems.
WARNING. Per FCC laws and regulations, this INDUSTRIAL GRADE device must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please contact us for a quote if you require professional installation and assistance with consent and approval process.
Alternate part names:
- cel-fi quatra
- cel-fi quattra
- celfi quatra
- celfi quattra
- cell-fi quatra
- cell-fi quattra
- cellfi quatra
- cellfi quattra
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
Data Sheet
User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
