CloseSmoothTalker Stealth M2M X6 Direct Connect w/ SMA + 11 in. Mag. Antenna + Hardwire Power
SmoothTalker Stealth M2M X6 Direct Connect w/ SMA + 11 in. Mag. Antenna + Hardwire Power
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: BTUX615M1181i
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Make An Offer
- Warning
Description
Product Description
Smooth Talker Stealth M2M X6 Direct Connect Booster Kit With SMA Connector + 11" Magnetic Antenna + Hardwire Power Supply (SmoothTalker BTUX615M1181i). Industry Canada IC ISED Approved, and Certified by FCC.
Stealth M2M X6 4G LTE Booster Kit Overview:- 15 dB gain.
- For modems or machines with female SMA connector.

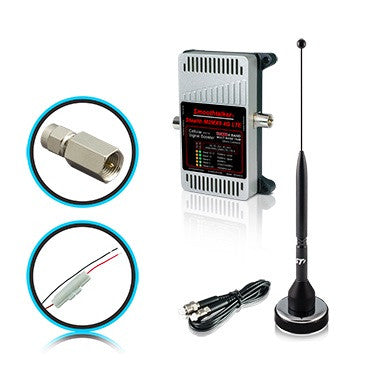

This Smooth Talker BTUX615M1181i kit includes:
- Stealth M2M X6 Direct Connect Booster. SKU: BTUX615XAA.
- 12V Install Power Supply (to be hardwired). SKU: DCH6i.
- Booster Input Cable 3 ft./ 100 cm. MCT Female to FME Female. SKU: ACX100X.
- SMA Male to FME Male Barrel Coaxial Connector. SKU: ADC810.
- 11" MCT magnetic mount antenna with a 2" diameter magnetic base plus 10 ft. cable. SKU: SEM11MX. Best suited to vehicles with obstructions on the roof where some vertical height is required.
Stealth M2M X6 15 dB 4G LTE 6-Band Direct Connect Booster is one of the most powerful booster in the M2M category on the market. It boosts 4G LTE and 3G signals of all cell service carriers in USA & Canada by connecting directly from mobile service provider's towers to cellular data devices like cellular modems, cellular trackers and monitors. All of these mobile boosters are plug and play and do not require maintenance as they are self-regulating. It can connect wirelessly up to 60 km. or 35 miles from the nearest cellular tower. It comes with a rugged cast aluminium housing which ensures reliability.
Features:
- Easy Installation.
- Can be used with all Single M2M Devices.
- Improves Poor Indoor Signal.
- Boosts RX and TX Network.
- Made In North America.
- Precision in Quality.
- FCC Approved.
- Industry Canada IC ISED Approved.
- Up to 30 times increased data speed.
Covers Six Frequency Bands:
- 700MHz, Band 12.
- 700MHz, Band 17.
- 700MHz, Band 13.
- 800MHz, Band 5.
- 900MHz, Band 2/25.
- 2100MHz, Band 4.
This 2G, 3G, 4G, LTE machine to machine M2M mobile signal amplifier kit covers the following cellular frequency bands: Band 12 & 17 (Lower 700 MHz), Band 13 (Upper 700 MHz), Band 5 (850 MHz), Band 2 & 25 (1900 MHz), Band 4 (AWS 1700/ 2100 MHz).
Note: All USA & Canadian frequencies are supported (USA Carriers AT&T Wireless, Verizon, T-Mobile, Sprint, etc., and Canadian Carriers Bell Canada, Telus Mobility, Rogers Wireless, Freedom Mobile, etc.) except Sprint bands 26 (lower 800 MHz) and band 41 (2500 MHz) which may be used in very few areas in USA. If you have Sprint wireless service, please check with Sprint to ensure they do not use the two specific frequencies as stated above, within your area. If they do, this M2M cellular signal amplifier kit will unfortunately not work for you.
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
What is the typical power consumption in term of wattage for this model? What is typical current draw of this model under 12V power supply?
1) Current measured at the 12V input side of the DCH6i is - At idle: 0.7 to 0.8 Amp.
2) At Max Tx out - 1.1 to 1.3 Amp.
Data Sheet / User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
