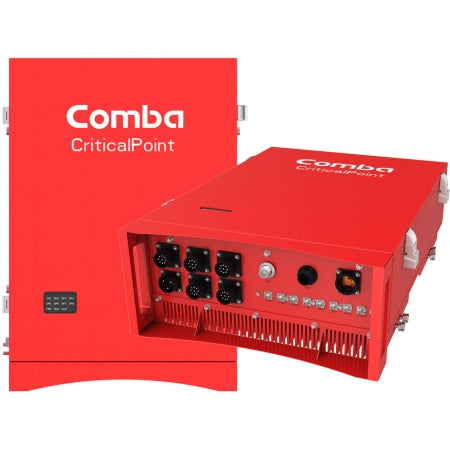

Comba Public Safety Fiber DAS Class B Master Unit (AC) 700/800MHz w/ 4 optical ports, 3 sub bands per band, 110VAC
Comba Public Safety Fiber DAS Class B Master Unit (AC) 700/800MHz w/ 4 optical ports, 3 sub bands per band, 110VAC
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: RH7W22-D78BACE4
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Data Sheet / User Guide
- Make An Offer
- Warning
Description
Product Description
Comba Critical Point Public Safety Fiber DAS Class B 700MHz and 800MHz Master Unit (DC) has 4 optical ports. It offers 3 sub-bands per band. Power supply type is 110V AC. Comba Telecom Public Safety Fiber Distributed Antenna System Master Unit Class B (700/800MHz, MU 4 ports, 110 VAC) has with 4 optical ports. With three sub bands for each band, it arrives with a three-year manufacturer warranty.
Features:
- 4 optical ports.
- Dual-band configuration supports 700MHz and 800MHz public safety bands.
- Supports P25 P1/P2 digital and conventional analog communications simultaneously.
- Supports FirstNet LTE Band 14.
- Offers 3 sub bands per band.
- 2W output power per band.
- Web based GUI for intelligent configuration, SNMP supported.
- Built-in mandatory isolation test to prevent oscillation.
- NFPA 1221 compliant dry contact alarms.
- NFPA 1221 compliant NEMA 4X enclosure.
Specifications:
| Supported Bands: | 700MHz and 800MHz Public Safety Network Bands. |
|---|---|
| Uplink Frequencies: | 788-805 MHz and 806-817 MHz. |
| Downlink Frequencies: | 758-775 MHz and 851-862 MHz. |
| Channel Bandwidth: | 200 KHz - 10 MHz. |
| Optical Fiber: | Single Mode. |
| Number of Optical Ports: | 4. |
| Optical Wavelength: | 1550, 1310 + WDM. |
| Master Unit Optical Output Power: | -4 to -2 dBm. |
| Maximum Optical Loss: | 6.5 dB. |
| Master Unit Fiber Connectors: | SC/ APC. |
| Number of Filters: | 3. |
| Total Output Power, Uplink: | 27 dBm. |
| Total Output Power, Downlink: | 33 dBm. |
| Maximum System gain: | 95 dB. |
| Gain Adjustment Range (GAR) @ 1dB step: | 0-30 dB. |
| Pass Band Ripple (p-p): | ≤ 3 dB. |
| Spurious emission: | FCC Compliant. |
| Intermodulation: | -13 dBm. |
| Uplink Noise Figure at Maximum Gain: | ≤ 5 dB. |
| System Delay: | 8.5 sec. |
| Max UL Input w/o Overdrive: | -30 dBm. |
| Max UL Input w/o Damage: | -10 dBm. |
| Input VSWR: | ≤ 1.5. |
| Impedance: | 50 Ohm. |
| Power Supply: | 110V AC. |
| Power Consumption (approx.): | 100W. |
| RF Connectors: | N-Female, duplex. |
| Fiber Connectors: | SC/ APC. |
| Operating Temperature: | -40 to +55 oC. |
| Operating Humidity: | ≤ 95%. |
| Ingress protection: | NEMA 4X. |
| Enclosure Cooling: | Convection. |
| MTBF: | 100,000 @ 77 oF. |
| Dimensions: | Height 22.4", Length 15.4", Width 8.5". |
| Weight without Bracket: | 66 lbs. |
| UPC: |
729198661144. |
| Warranty: | Three Years. |
WARNING:
Per FCC laws and regulations, INDUSTRIAL GRADE distributed antennas system (Fiber DAS) master and/or remote units must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please submit public safety DAS installation service questionnaire for a quote if you require professional installation and assistance with consent and approval process.
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
Data Sheet
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
