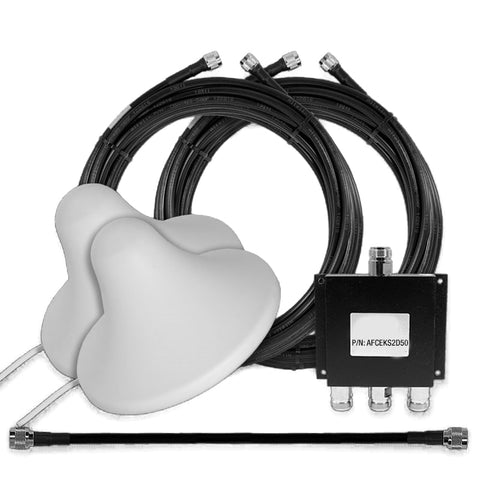

Premium quality expansion kit contains two Dome Surface Mount Antennas plus all the components needed to connect them to an existing 50 Ohm cell phone booster system. This is our premium signal booster custom batch # 3 inventory item: 2 x Indoor Dome Antennae (50 Ohm) complete with 3-way Splitter and Cables with UPC 697691010236.

Mount the dome antennas in areas where the cellular reception is weakest. This can be up to 50 feet away from the existing antenna if the cables that are included in the kit are used. For longer distances, extension cables can be purchased separately. The kit comes with N-connectors and is compatible with any 50 Ohm cell phone booster and repeater including Uniden, Hiboost, SureCall and Wilson weBoost.

Expansion kit installation is straight-forward. The dome ceiling antennas surface mounts flush to the ceiling using a mounting bracket. The mounting bracket is attached to the ceiling with screws and anchors that are included, after which the antenna is snapped into place. Use both the 50 foot 400 series cables provided with the kit and the existing cell booster cable to connect the antennas to the Signal Splitter. The signal splitter is then connected to the cell booster using the 2 foot jumper cable provided.

This expansion kit includes:

• 2 x AFCACS0727G3NFP5 50 Ohm In-Building Surface Mount Dome Antennas.
• 1 x AFCCS0727S3NFM6 50 Ohm 3-Way Wideband Signal Splitter.
• 1 x 2 foot AFCAX-400 Low Loss Cable (N-Male to N-Male).
• 2 x 50 foot AFCAX-400 Low-Loss Cable (N-Male to N-Male).

SignalBooster.com expansion kits provide an easy way to expand the cell coverage in your office or home. It might also be a good idea to add lightning protection to safeguard your outdoor antenna and booster against any electrical surges. SignalBooster.com recommends the AFCLC03NMNFBC3 50 Ohm Lightning Surge Protector shown in the accessories section.

3-Way Signal splitter description.

The SignalBooster.com AFCCS0727S3NFM6 is a 50 Ohm signal splitter which is used to divide a signal evenly between 3 output ports. It is weather-proof and can be used for indoor and outdoor installation.

This signal splitter is compatible with any 50 Ohm cell phone booster and repeater including Uniden, Hiboost, SureCall and Wilson weBoost. It is typically used to connect several indoor antennas to a single booster. They are also often used to couple or "stack" many outdoor antennas together to increase gain or shape signal coverage.

This wide band splitter operates at all cellular bands from 698 MHz to 2700 MHz. This design allows it to be used with many frequency bands making it useful for many applications including 900MHz and 2.4GHz WiFi and wireless video systems. They use an efficient micro-strip design which has low VSWR and insertion loss.

Features.

• Compatible with any 50 Ohm Cell Phone Booster, Amplifier and Repeater.
• Full Band Coverage (698 MHz to 2700 MHz).
• Low VSWR and insertion loss.
• Weatherproof.
• High isolation between ports.
• N Female Connectors (50 Ohm).
• Machined Aluminum Housing.
• Micro-strip Design using PTFE/Fiberglass.

Applications.

• Operates for all carriers.
• 2G, 3G, 4G and LTE Cellular.
• Indoor and Outdoor use.
• CDMA, LTE, UMTS, GSM and AWS.
• Uniden, Hiboost, SureCall and Wilson weBoost Boosters.
• 802.11b/g/n WiFi, WiMAX.
• Distributed Antenna Systems.
• Splitting Power.
• Combining Power.

3-Way Splitter Technical Specifications.

AFCAX-400 Low Loss Cable.

SignalBooster.com AFCAX-400 is a 400-series coaxial cable featuring high-performance, low insertion loss and a durable PE jacket. This cable is manufactured with high quality construction techniques and achieves electrical performance similar to Commscope CNT-400, Times Microwave LMR-400 and other 400-series cables. It is available in 500 foot reels, or by the foot.

It is compatible with industry standard 400-series connectors and also supplies a wide range of solderless, clamp and crimp connectors. Various off-the-shelf AFCAX-400 cable assemblies are stocked and custom AFCAX-400 series assemblies can be manufactured quickly.

Features.

• Compatible with Standard 400-Series Connectors.
• Direct replacement for Commscope CNT-400, RG-8/9913 and Times Microwave LMR-400 Air-Dielectric Cables.
• High Performance / Low Loss.
• Durable PE Jacket.

Applications.

• Land Mobile Radio (LMR).
• WLL, WiFi, WiMax and WLAN.
• SCADA and GPS Systems.
• Antenna Feeds.
• RF Pigtails and Jumper Cables.
• Mobile Use and Ham Radio.

Construction Specifications.

Electrical Specifications.

Mechanical Specifications.

RF Performance.
