Product Description

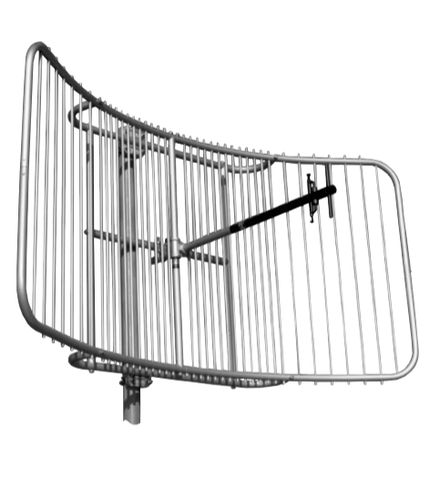

17.5 dBi Gain commercial quality parabolic directional antenna with reflector grid covering 470 to 490 MHz. This is high gain half-parabolic antenna used in communication and broadcast systems around the world. It can be mounted on roof top of any house or commercial building containing businesses and their offices.
It helps improve telecommunication access for wireless telecom devices installed inside. It provides high front-to-back ratio for point-to-point relay systems and professional commercial fixed-station applications in the 470 to 490 MHz band. They feature:
- High gain, half parabolic design.
- Lower weight and surface area than a parabolic dish or grid.
- Very rugged construction using anodized aluminum pipe, tubing and castings; plus stainless steel hardware and fastenings.
- Weather resistant foam-filled broadband feed assembly requires no pressurization. Easily replaced for frequency changes.
- Compact packaging for standard U.S. express services.
Specifications:
| Frequency Range | 470-490 MHz |
|---|---|
| Gain | 17.5 dB |
| Impedance | 50 ohms |
| VSWR | < 1.5:1 |
| Polarization | Horizontal or vertical |
| Front-to-back ratio | 25 dB |
| Maximum input power | 100 watts (at 50°C) |
| H-plane beamwidth | 24 degrees (half-power) |
| E-plane beamwidth | 32 degrees (half-power) |
| Connector | N female |
| Fits | Type 400 Cable with N-Male Connector |
| Weight | 38 lb. |
| Dimensions | 68 x 36 x 18 inches |
| Wind load at 93 mph (150 kph) Front / side | 134 lbf / 72 lbf | 594 N / 320 N |
| Wind survival rating* | 100 mph (160 kph) |
| Shipping dimensions | 40 x 36 x 7 inches. |
| Shipping weight | 47 lb. |
| Mounting | Mounting kits available for masts of 2.375 to 4.5 inch (60 to 114 mm) OD. |
| Compliance | RoHS Certified directive: Lead (Pb) Free. ISO 9001, 14001 Certifications. |
* Mechanical design is based on environmental conditions as stipulated in TIA-222-G-2 (December 2009) and/or ETS 300 019-1-4 which include the static mechanical load imposed on an antenna by wind at maximum velocity.
