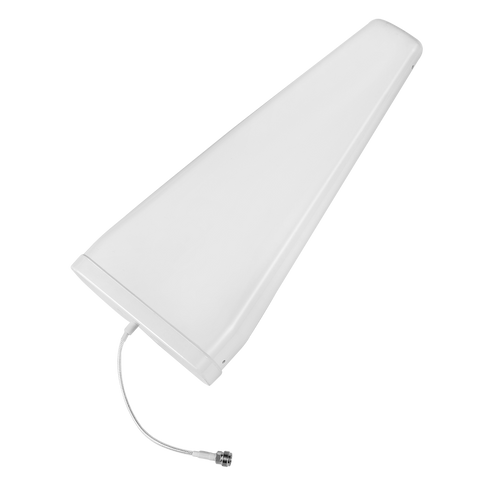

3G 4G 5G (617-2700 MHz) Outdoor Pole-Mount Yagi Directional Antenna
3G 4G 5G (617-2700 MHz) Outdoor Pole-Mount Yagi Directional Antenna
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: SC-530W
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Make An Offer
- Warning
Description
Product Description
Ultra-Wideband Outdoor Uni-Directional Yagi Antenna.
SureCall Yagi 5G antenna has been designed for maximum performance. SureCall 5G Yagi antenna is a high-gain directional outdoor antenna with a range of up to 30 miles for the most remote signal booster applications. The Ultra-Wideband outdoor antenna transmits and receives signal directionally.
SureCall 5G antenna has been designed to cover 2G/3G/4G/5G and WLAN systems for Cellular, PCS, AWS and LTE frequencies. Offers 7 / 8 / 9 dBi Max Gain depending on frequency (see specs. below). It has N-Female connector. Impedance: 50 Ohm. Ultra-Wideband: 617 - 2700 MHz.
5G Band 71 compatible. That includes T-Mobile 5G Sub-6 Frequency. Includes mounting hardware - U-bolts come with the Yagi antenna and will fit any 1.25 inch to 2 inch diameter pole (not included). SKU / Part Number: SC530W. UPC: 854328008442.
- Ultra-wideband : 2G, 3G, 4G, 5G, (617 - 2700 MHz) outdoor pole-mount yagi directional antenna.
- 7 / 8 / 9 dBi Max Gain.
- N-Female connector (50 ohm).
- Includes mounting hardware.
- Connects with SC-400 cable (sold separately).
- Directional antenna needs to be pointed towards carrier’s nearest cell tower.
Installation.
- Install U-Bolt on pole.
- Slide pipe clamp over U-Bolt with the flat side facing away from the pipe.
- Slide antenna bracket onto U-Bolt in desired location.
- Install flat washer, split washer and nut, and hand-tighten.
Note: Antenna may be installed on a variety of pipe angles. Ensure that the antenna is pointing in the direction of the closest cellular tower and is vertical with the drip hole at the bottom. - Connect antenna with SC-400 cable that leads to your booster port marked OUTSIDE.
Performing a "soft" installation and testing your cell signal performance at various Yagi antenna directions is recommended to derive maximum value from your signal booster.
Note: Wherever possible, it is recommended to provide maximum separation between outside and inside antennas. Remember to try to face this outside yagi or lpda antenna away from interior antenna. Yagi is commonly used as synonym for LPDA which stands for log-periodic dipole array antenna, or simply "log-periodic antenna" (LPA).
Compatibility.
Booster Compatibility: All 50 Ohm brand 2G-5G cell boosters including SureCall home and industrial in-building signal boosters. Cable Compatibility: Low-loss coax cables with N Male on either end (SC-400, SC-240, etc.). Accessory Compatibility: All brands 50 Ohm Couplers and Splitters incl. SureCall.
5G Yagi Outdoor Antenna Specifications:
| Frequency: | 617-697 / 698-960 / 1710-2700 MHz. |
|---|---|
| Beamwidth: | H:90° E:60° / H:90° E:60° / H:70° E:55°. |
| Max. Gain: | 7 / 8 / 9 dBi. |
| VSWR: | < 2. |
| Input Impedance: | 50 Ohm. |
| Polarization Type: | Vertical. |
| Max Power: | 50W. |
| Radiation Pattern: | Directional. |
| Connector Type: | N-Female. |
| Fits: | Type 400 Cable with N-Male Connector. |
| Mount Type: | Pole or Mast with 40 to 50 mm diameter. |
| Dimensions: | 17.3 x 8 x 1.45 inches. |
| Weight: | 2.25 Ibs. |
| Cover Material: | PC+ABS. |
| Operating Temp. (degrees fahrenheit): | -45 ~ +108. |
For more details please read 5G Outside Directional Antenna Datasheet.
Other 5G Band 71 Covering Exterior Antennas Available:
- 5G Omni (50 Ohm): https://www.signalbooster.com/products/2g-3g-4g-5g-617-2700-mhz-outdoor-omni-directional-antenna
- 5G LPDA Multi-Element (50 Ohm): https://www.signalbooster.com/products/nextivity-cel-fi-outdoor-wideband-directional-lpda-r-antenna
- 5G DUAL LPDA 50 Ohm MIMO: https://www.signalbooster.com/products/4g-lte-5g-600-6000-mhz-dual-lpda-mimo-antenna-mounting-bracket
- 5G Parabolic Grid (50 Ohm): https://www.signalbooster.com/products/rf-boost-long-range-antenna-for-cellular-wi-fi-grid-parabolic
- 5G Parabolic Round Grid Higher Wind Resistance (50 Ohm): https://www.signalbooster.com/products/4g-5g-cell-wifi-round-grid-parabolic-antenna
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
Does this antenna boost the n41 band frequency 2500MHz?
Yes, this antenna will boost n41 band frequency signals passively (no powered device needed - just connect to your mobile network router or modem using suitable length cable and proper connector that will fit your internet device). It will definitely support Band 41.
-
Is it compatible with Weboost system for a rv in remote location, probably 20 miles from tower
Yes, if your weBoost system has outside antenna port impedance of 50 Ohm. The connector will fit fine within any brand existing cellular system with 50 Ohm exterior antenna port - all you do is switch out the existing outside antenna with this one, and you're good.
If in event your weBoost system has 75 Ohm exterior antenna port, you can get a 75 Ohm Yagi antenna made by this brand:
Data Sheet / User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
