Description
Product Description

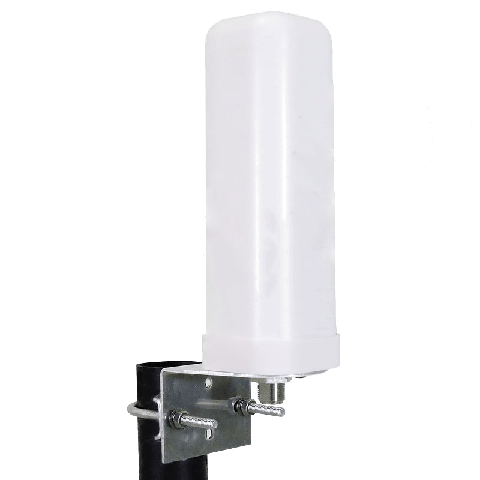

Premium quality Wide Band Outdoor Building Omni Antenna (75 Ohm) for 3G, 4G LTE and Wi-Fi wireless signals is an exterior antenna that covers 360 degree and offers up to 5dBi broadband gain.
It can be used outdoors as a building antenna to improve access to cell tower signals for cellular boosters and mobile amplifiers indoors. This is our premium signal booster custom version # 4 inventory item: Outdoor Building Omni Antenna (75 Ohm) 3G 4G LTE WiFi with UPC 697691010472.
It is compatible with most 75 Ohm cellular phone repeaters, including Uniden, Hiboost, SureCall and weBoost.
This antenna will work for all international cellular bands for 4G data and voice with any carrier including AT&T, Telus, T-Mobile, Bell Canada, Verizon, Rogers and many more. In most instances it is used outdoors as a building antenna to improve access to cell tower signals for indoor boosters and amplifiers.
However, it can potentially be used within indoor spaces such as large buildings to transmit enhanced coverage from one area to weak coverage in other building area.
With its wide frequency range of 900MHz and 2.4GHz, it is ideal for WiFi and Wireless Video applications.
This antenna is weatherproof and can be mounted on a wall or pole where it can sustain high winds and bad weather. Multi-mount hardware is included. Its integral F-Female connector can be used with 75 Ohm coaxial cable such as RG59, RG6 and RG11.
Features.
- Compatible With 75 Ohm Cell Phone Repeaters, Amplifiers and Boosters.
- Covers 698-2700 MHz.
- White ABS Radome, UV Stable.
- High Efficiency and High Gain.
- Operates in any Weather.
- Multi-Mount Kit for Wall or Pole Mounting Included.
- F Female Connector (75 Ohm).
Applications.
- All Carrier Operation.
- 2G, 3G, 4G and LTE Cellular Applications.
- Designed for Outdoor use, but can be installed Indoors.
- LTE, CDMA, GSM, UMTS, AWS.
- Stadiums, Warehouses and DAS Systems.
- Uniden, Hiboost, SureCall and Wilson Boosters.
- WiFi 802.11b/g/n.
- 900 MHz and 2.4 GHz Wireless Videos.
Specifications:
| Frequency Range | 698 to 960 / 1710 to 2700 MHz |
|---|---|
| Gain | 5 dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 360 Degrees |
| Vertical Beamwidth | 60 Degrees |
| VSWR | 1.5:1 Typical |
| Impedance | 75 Ohm |
| Connector Type | Integral F-Female |
| Fits | 75 Ohm cables with F-Male connector such as Type RG-6 cable with F Male connectors or Type RG-11 cable with F Male connectors |
| Maximum Power | 100 Watts |
| Dimensions | 2.6 x 2.6 x 8.3 Inches (66 x 66 x 211 mm) |
| Radome Material | UV-ABS |
| Radome Color | White |
| Temperature Range | -40°F to 176°F (-40°C to 80°C) |
| Weight | 0.85 Lbs. (0.39 Kg) |
| Mast Diameter | Conical 1.5 to 2 Inches (30 to 50 mm) |
| Lightning Protection | DC Ground |
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
Looking to pick up wifi from a mile away. Is this possible ?
Yes, the device at link below has up to 10 miles range:
https://www.signalbooster.com/products/wifi-point-to-point-bridge-link-connection-extender-signal-booster-kit
Data Sheet / User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
