SureCall OTR Truck Antenna (SC-550W) - Heavy Duty Exterior Trucker Antenna
SureCall OTR Truck Antenna (SC-550W) - Heavy Duty Exterior Trucker Antenna
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: SC-550W
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Make An Offer
- Warning
Description
Product Description

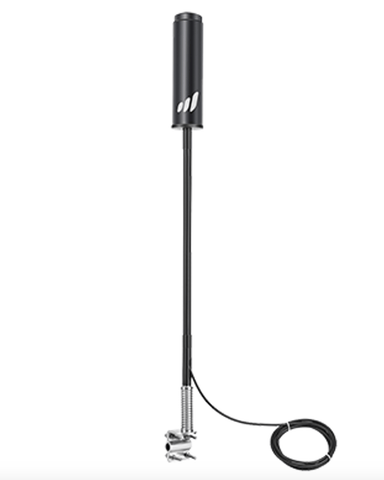

Stay connected anywhere with SureCall's heavy-duty OTR truck antenna that is equipped with a strong base and mirror mount that can hold up in the harshest conditions.

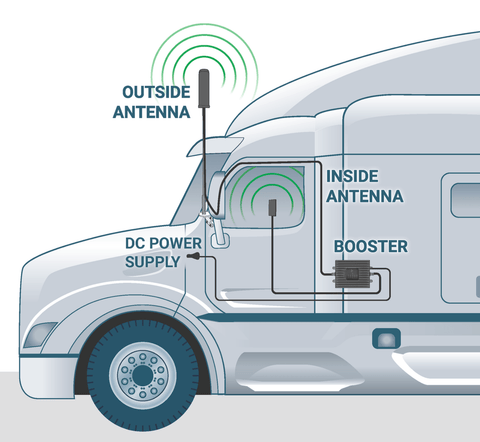

The high-performance exterior vehicle antenna provides better interior coverage and connectivity for multiple simultaneous users on all 5G and 4G LTE cellular devices, including hotspots, when paired with the Fusion2Go 3.0 or another in-vehicle signal booster kit. Includes cable adapters for the most common vehicle signal boosters with SMB-Female and SMA-Male ends for universal connectivity.

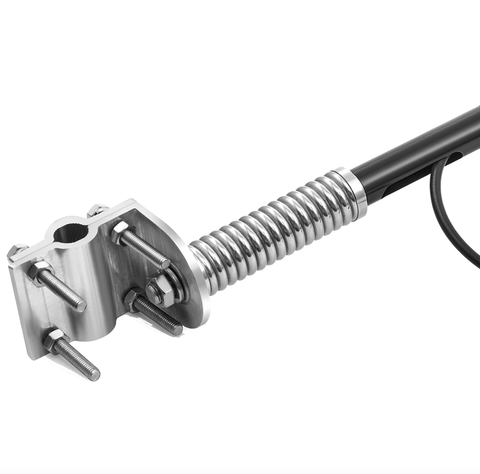

Designed for use with large trucks, big rigs, RVs, work vans, and fleet vehicles, SC-550W comes equipped with a 2-clamp mounting bracket and durable mounting hardware with thread-lock glue that helps withstand vibrations.
The antenna is constructed with durable weather-proof components that are protected from water, dust and the harshest road grime.
Highlights:
-
3.5 dBi Gain.
-
Ultra-wideband (617 - 2700 MHz).
-
Omni-directional.
-
50 Ohm.
-
FME-Female.
-
Built-in ground plane.
-
Fits 3/8 x 24 thread mount.
- UPC: 854328008923
| Part Number | SC-550W |
| Frequency Range | 617-697 / 698-960 / 1710-2700 MHz |
| Beamwidth | H:360° E:60° / H:360° E:55°/ H:360° E:40 |
| VSWR | <2/2/2 |
| Gain | 3.5 dBi |
| Impedance | 50 Ohm |
| Polarization Type | Vertical |
| Radiation Pattern | Omni-directional |
| Maximum Power | 50 W |
| Connector Type | FME-Female |
| Color | Black |
| Operating Humidity | 5% ~ 95% |
| Cable Length | 10 ft (integrated), 5 ft extension (optional) |

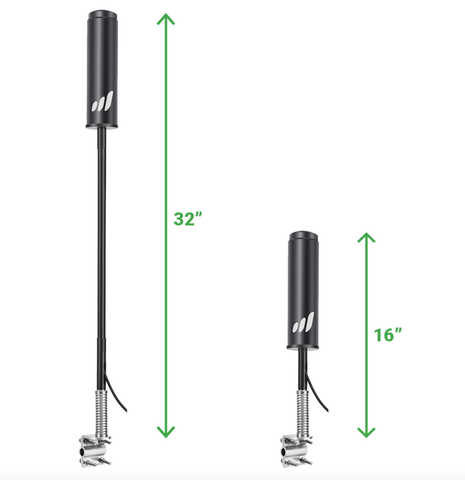

| Antenna Height Options | 16", 32" |
| Operating Temperature | -22° F to +176° F |
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
