Yagi/ Log Periodic Antenna Directional w/Reflector Grid, 3G 4G LTE WiFi, 50 Ohm, 10 dBi

AFCALG0727G10NFS6 - Yagi/ Log Periodic Antenna Directional w/Reflector Grid, 3G 4G LTE WiFi, 50 Ohm, 10 dBi

Yagi/ Log Periodic Antenna Directional w/Reflector Grid, 3G 4G LTE WiFi, 50 Ohm, 10 dBi

  • Regular price $179.99 USD Sale price $99.99 USD
Best Price Guarantee. [1, 2, 3]
  • Product Url
  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • This field is required. Please enter a value.

  • *These fields required. [2] May exclude very large size items because we offer free shipping so our actual cost may be too high due to the size/ weight of item to be able to match the price. [3] Request must be made before order placement. Not valid after order placed. Other restrictions may apply. Please contact us for details.

Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.

Free Lifetime Support. SKU / Model: AFCALG0727G10NFS6


DISCONTINUED / OBSOLETE. Would you like similar item? Please contact us at 1-855-846-2654 or order@signalbooster.com for recommendation to buy similar product from same, or alternate supplier.

Best Price Guarantee [1 2 3]
Please note: We also carry alternate 26 dB Gain version: 26dBi Gain Metal Reflector Grid Directional Antenna (50 Ohm).

Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

  • Description
  • Reviews
  • Questions & Answers
  • Make An Offer
  • Warning

Description

Product Description

Premium Quality Wide Band Outdoor Yagi/ Log Periodic Antenna Directional with Reflector Grid. For 3G, 4G LTE, WiFi networks. Operates on 50 Ohm impedance. Works on wide frequency range from 698 MHz to 2700 MHz. Yields up to 10 dBi Gain. It can be mounted on top of any house or building on roof outside to improve access to cell phone tower signals for boosters and amplifiers installed inside. This is our premium signal booster custom style # 6 inventory item: Outdoor Yagi/ Log Periodic Antenna Directional with Grid Reflector, 3G 4G LTE WiFi, 50 Ohm, 10 dBi, 698-2700 MHz with UPC 697691010700. We carry an alternate 12dBi Gain version of this 50 Ohm Metal Reflector Directional Grid Antenna (12dBi) as well.

This is a directional Log Periodic Antenna, also known as Yagi antenna, which transmits powerfully in one direction. It is designed for using outdoors with any 50 Ohm 2G, 3G, 4G and LTE cellular signal amplifier or repeater. It boasts up to 10 dBi Gain. Compatible with most 50 Ohm cell phone repeaters and boosters, including Uniden, Hiboost, SureCall and Wilson weBoost.

This uni-directional Log-Periodic antenna will work for all international mobile frequency bands for 3G, 4G, LTE data and voice with any carrier including ATT, Telus Mobility, T-Mobile USA, Bell Canada, Verizon Wireless, Rogers and many more. In most instances, this unidirectional Yagi-antenna is used as an on-building roof antenna to improve access to mobile tower signals for signal amplifiers and boosters that have been installed inside. However, it can be used within interior spaces inside big buildings, warehouses, etc. to transmit excellent coverage from one area to boost weak coverage in another area.

The wide frequency range also makes it ideal for use at 900MHz and 2.4GHz for Wireless Video applications and WiFi.

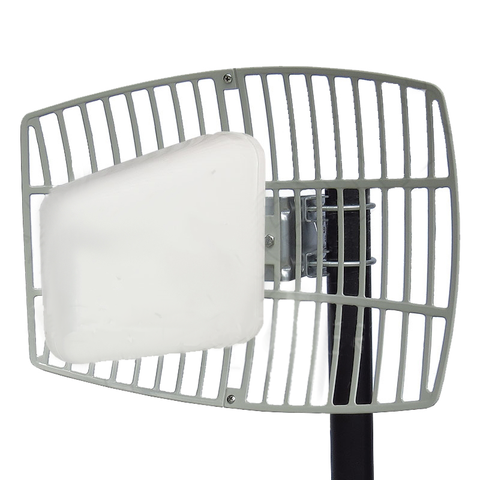

Reflector Grid.

It features a die-cast aluminum reflector grid that is corrosion resistant and mounted on the rear of antenna. The grid improves the Gain, Front to Back Ratio and Return Loss. This grid / log periodic yagi antenna is completely weatherproof and can be mounted on a pole with the hardware included. The 9 inch low-loss RG58 antenna lead is terminated with an N Female connector which is typically used with 50 Ohm low loss coaxial cable.

Features.

  • Reflector Grid Improves Gain, Front to Back Ratio and Return Loss.
  • Compatible With 50 Ohm Cell Phone Repeaters, Amplifiers and Boosters.
  • Covers 698-2700 MHz.
  • White ABS Radome, UV Stable.
  • High Efficiency and High Gain.
  • Operates in any weather.
  • Tilt / Swivel Pole Mount Hardware Included.
  • N-Female Connector (50 Ohm).

Applications.

  • All Carrier Operation.
  • 2G, 3G, 4G and LTE Cellular Applications.
  • Designed to be installed on building and housing roofs but can be installed within large interior spaces.
  • LTE, CDMA, GSM, UMTS, AWS.
  • Stadiums, Warehouses and DAS Systems.
  • Uniden, Hiboost, SureCall and Wilson Electronics Boosters.
  • WiFi 802.11b/g/n.
  • 900 MHz and 2.4 GHz Wireless Video.

Specifications:

Frequency Range 698 to 960 / 1710 to 2700 MHz
Gain 10 dBi
Polarization Vertical
Horizontal Beamwidth 90 / 75 Degrees
Vertical Beamwidth 60 / 55 Degrees
VSWR <1.5:1
Impedance 50 Ohm
Connector Type N-Female
Fits Type 400 Cable with N-Male Connector
Maximum Power 100 Watts
Cable Length 9 inches (229 mm)
Dimensions - Log Periodic 11.5 x 8.4 x 2.6 Inches (292 x 213 x 66 mm)
Dimensions - Reflector Grid 16.1 x 11.9 Inches (410 x 302 mm)
Temperature Range -40°F to 149°F (-40°C to 60°C)
Weight 0.7 Lbs. (0.32 Kg)
Mast Diameter Conical 1.2 to 2 Inches (30 to 50 mm)
