3 Feet Tripod Antenna Mount
3 Feet Tripod Antenna Mount
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: TRIPOD-MOUNT
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Make An Offer
- Warning
Description
Product Description

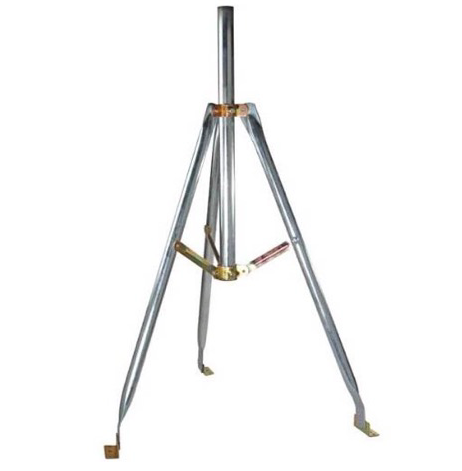

3 feet Tripod Antenna Mount with 2 inches Mast Pipe. It can be used as a portable dish mount to mount signal booster antenna, a direct-broadcast satellite (DBS), or any type of TV antenna. This is a heavy duty galvanized steel tripod to withstand even the harshest outdoor elements. Stronger and more rigid than most roof mounts. It is pre-assembled and can be condensed for storage. No Assembly Required – This tripod features a unique one-piece construction for easy installation. Read tripod installation instructions.
Dimensions and weight:
- Height: 36 inches.
- Width: 34 inches.
- Diameter: 1.66 inches.
- Weight: 7.5 lb.
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
Do the feet attach to a mounting clips, or stand unattached?
Pitch pads (not included) are recommended when installing this product. Tripod mount must be securely anchored to the roof as should the guy wires. Apply roofing compound around the base of the brackets, screws and eyebolts to weather proof the holes in the roof. Try to lag bolt the legs to the roof rafters. If not, then install wood plates in the attic and install bolts to secure the mount.
-
What are the shipping dimensions for 2 (two) pcs.?
Shipping dimensions for 2 units of the Tripod stand are: Box Size = 10" X 10" X 40". Additionally, the weight equals 23 lbs. for two tripods.
Data Sheet / User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
