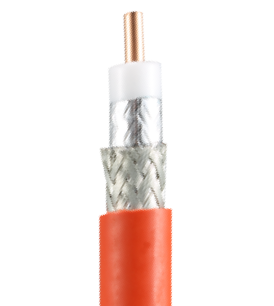

30' Plenum Cable (Fire Rated) SureCall SC400 Coaxial with N-Male Connector (Orange Color Thirty Feet Coax)
30' Plenum Cable (Fire Rated) SureCall SC400 Coaxial with N-Male Connector (Orange Color Thirty Feet Coax)
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: SC-PL-30FT
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Data Sheet / User Guide
- Make An Offer
- Warning
Description
Product Description
Buy 30' SC400 Ultra Low Loss Coax Plenum Fire Rated Cable with N-Male connectors. This is an orange colored cable. This is UL Listed and Fire Rated Top Quality Plenum Cable branded under SureCall brand name, but comparable to others such as CNT-195-FR 50 Ohm Braided Coaxial Cable that is non-halogenated with fire retardant polyolefin jacket and DCA S2 D2 Compliant.
SKU: SC-PL-30
UPC: 858507006069
Weight: 3 Lbs.
This thirty feet long Plenum coaxial cable has Type N Male connectors on both ends. This cable is 30 ft. in length yet it is very durable and high safety cable thanks to its rugged characteristics. It may not bend as easily because the flexibilty is minimized due to the safety jacket insulation which protects it from external elements. However, its ruggedness and durability enables it to be used practically anywhere, indoors or outdoors because it meets maximum safety standard possible for cables.
SureCall Plenum rated cables are completely insulated with low smoke and low flame characteristics. Almost all large buildings utilize the ceiling for returning air to the central AC unit, thereby making it a plenum ceiling. This means all cables running through the ceiling need to be plenum rated cables. Our 30ft. cables for plenums are rated to meet or exceed industry standard requirements.
What exactly is Plenum? In building construction, the "plenum" is the compartmental space that is used for air circulation in heating and air conditioning systems. It is typically between the structural ceiling and the suspended ceiling or under a raised floor. What is the standard used for manufacturing these type cables? All materials intended for use on wire and cables to be placed in plenum spaces are designed to meet rigorous fire safety test standards in accordance with NFPA 262 and outlined in NFPA 90A.
NFPA 90A is the Standard used for Installation of Air-Conditioning and Ventilating Systems. This cable for plenum spaces meets or exceeds industry standards. Please click the "data sheet" tab above to read detailed characteristics of this best in industry Thirty Feet Plenum Cable (SCPL30).
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
This product has N Male connections. What is N male connections? It shows a female connection on the cable and I need a female to connect to a male.
Please see the second image we have added that shows the Male N connector so you understand better. Examine your cable now and confirm that it will screw into this connector. If not, you may need to purchase a cable connector to connect the two.
Data Sheet / User Guide
Data Sheet
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
