Description
Product Description
Cable Splitters | weBoost by Wilson Pro / Wilson Electronics.
Cable Splitter made by weBoost / WilsonPro parent company Wilson Electronics offers six options to choose from the drop-down menu above. Details of each are as follows:
Two Way Splitter (50 Ohm) with N-Female Connector Specs.:
Splitter 2 Way, -3 dB signal loss, covering frequencies 700-2700 MHz, N Female Connectors, 50 Ohm. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.
| Model | 859957 |
|---|---|
| Connectors | N-Female |
| Dimensions | 3.7 × 2.5 × 0.78 inches |
| Frequency | 700-2700 MHz |
| Impedance | 50 Ohm |
| Signal Loss | 3 dB |
| Insertion Loss | 0.4 dB |
| VSWR | ≤2.0:1 |
| Isolation | ≥20 |
| Power Capacity | 50 W |
| Operating Temperature | -40 to 140 Degrees Fahrenheit |
| Weight | 4.23 Oz |
| UPC | 813986008218 |
Two Way Splitter (75 Ohm) with F-Female Connector Specs.:
Splitter 2 Way with -3 dB signal loss covering 698-2700 MHz frequencies and F Female Connectors. 2 Way Splitter, 75 Ohm with F-Female Connectors. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.
| Model | 850034 |
|---|---|
| Connectors | F-Female |
| Dimensions | 3.6 x 3.5 x 0.8 inches |
| Frequency | 698-2700 MHz |
| Impedance | 75 Ohm |
| Signal Loss | 3 dB |
| Insertion Loss | 0.4 dB |
| VSWR | ≤2.0:1 |
| Isolation | ≥20 |
| Power Capacity | 50 W |
| Operating Temperature | -40 to 140 Degrees Fahrenheit |
| Weight | 7.04 Oz |
| UPC | 811815028970 |
Three Way Splitter (50 Ohm) with N-Female Connector Specs.:
Splitter 3 Way with -4.5 dB signal loss covering 700-2700 MHz frequencies with N Female Connectors and 50 Ohm impedance. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.
| Model | 859980 |
|---|---|
| Connectors | N-Female |
| Dimensions | 3.9 × 2.9 × 0.78 inches |
| Frequency | 700-2700 MHz |
| Impedance | 50 Ohm |
| Signal Loss | 4.5 dB |
| Insertion Loss | 0.5 dB |
| VSWR | ≤2.3:1 |
| Isolation | ≥20 |
| Power Capacity | 50 W |
| Operating Temperature | -40 to 140 Degrees Fahrenheit |
| Weight | 6.34 Oz |
| UPC | 811815020066 |
Three Way Splitter (75 Ohm) with F-Female Connector Specs.:
Splitter 3 Way with -4.5 dB signal loss covering 698-2700 MHz frequencies with F Female Connectors. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.
| Model | 850035 |
|---|---|
| Connectors | F-Female |
| Dimensions | 4.0 x 4.7 x 0.8 inches |
| Frequency | 698-2700 MHz |
| Impedance | 75 Ohm |
| Signal Loss | 4.5 dB |
| Insertion Loss | 0.5 dB |
| VSWR | ≤2.3:1 |
| Isolation | ≥20 |
| Power Capacity | 50 W |
| Operating Temperature | -40 to 140 Degrees Fahrenheit |
| Weight | 10.88 Oz |
| UPC | 811815028987 |
Four Way Splitter (50 Ohm) with N-Female Connector Specs.:
Splitter 4 Way with -6 dB signal loss covering 700-2700 MHz frequencies with N Female Connectors and 50 Ohm impedance. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.
| Model | 859981 |
|---|---|
| Connectors | N-Female |
| Dimensions | 4.5 × 4.5 × 0.98 inches |
| Frequency | 700-2700 MHz |
| Impedance | 50 Ohm |
| Signal Loss | 6 dB |
| Insertion Loss | 0.6 dB |
| VSWR | ≤2.4:1 |
| Isolation | ≥20 |
| Power Capacity | 50 W |
| Operating Temperature | -40 to 140 Degrees Fahrenheit |
| Weight | 11.64 Oz |
| UPC | 811815020073 |

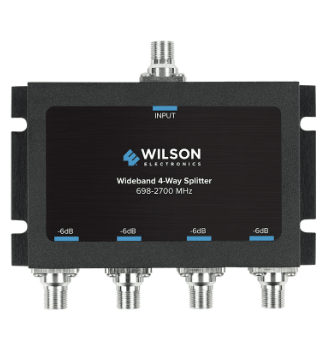

Four Way Splitter (75 Ohm) with F-Female Connector Specs.:
Splitter 4 Way with -6 dB cable signal loss covering 698-2700 MHz frequencies with F Female Connectors. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.
| Model | 850036 |
|---|---|
| Connectors | F-Female |
| Dimensions | 4.0 x 4.7 x 0.8 inches |
| Frequency | 698-2700 MHz |
| Impedance | 75 Ohm |
| Signal Loss | 6 dB |
| Insertion Loss | 0.6 dB |
| VSWR | ≤2.4:1 |
| Isolation | ≥20 |
| Power Capacity | 50 W |
| Operating Temperature | -40 to 140 Degrees Fahrenheit |
| Weight | 11.04 oz |
| UPC | 811815028963 |
Features:
- 698-2700 MHz Band.
- Cellular mobile communication.
- Low insertion loss, low VSWR.
- High isolation, low ripple.
- Microstrip structure.
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
Will this work with an RG11 cable?
Yes, these will work with 75 Ohm RG-11 cables with F-Male connectors on their ends.
-
Tv antenna cable has female end and cables to tv are both male. Is this the splitter I need?
Sorry, this does not seem to be what you need because this splitter has 50 Ohm impedance, whereas TV cables usually have 75 Ohm impedance. Part # 850034 has 75 Ohm impedance. However, please note that the ports of that SKU # 850034 have female (F-Female) connector so you will need a patch cable with F-Male to F-Male adapter to connect the TV antenna cable to that splitter end with single connector.
Data Sheet / User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
