Description
Product Description

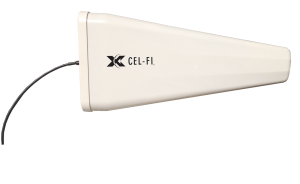

Cel-Fi Wideband Directional Antenna (50 Ohm) is an outdoor vertically polarized highly directional antenna for Cellular Boosters; with 10 dB gain in the low bands and 11 dB gain in the high bands. The weather resistant housing is built with UV stabilized ABS plastic casing.
Optimized for Cel-Fi products, the Cel-Fi Wideband Directional Antenna works great with the Cel-Fi WAVE Antenna positioning app. This unit includes standard brackets for mounting, white 2 meter long cable (6.56 feet long), and type N Female connector. It can also be used with the Cel-Fi Pole Mount. SKU: 591NA32255709V34. Model #: A32-V32-101 / A32V32-101 / A32-V32101 / A32V32101. UPC: 697691016504.
Summary: Nextivity Cel-Fi GO-X/PRO/QUATRA Indoor/Outdoor Wideband Directional Yagi Antenna - Bracket Mount - White 2m Cable - LTE (N F).
Features:
- Boosts cell signal by up to 11 dBi.
- 700 – 2700 MHz Frequency.
- Vertically polarized.
- Uni-directional signal transmission.
Specifications.
| Frequency Range | 698 to 960, 1710 to 2700 MHz |
|---|---|
| Gain | 10 dBi on 698 to 960 MHz & 11 dBi on 1710 to 2700 MHz |
| Horizontal Bandwidth | 70° |
| Vertical Bandwidth | 50° |
| F/B Ratio | ≥15dB |
| VSWR | ≤2.0 on 698 to 960 MHz & ≤1.5 on 1710 to 2700 MHz |
| Input Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Power | 50 Watts |
Mechanical Specifications.
| Connector | N-Type female connector with 2m Coax Cable |
|---|---|
| Dimensions | 450 x 210 x 65 mm |
| Weight | 1.1 kg |
| Rated Wind Velocity | 210 km/h |
| Operating Temperature | -40°C to +65 °C |
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
