Channel Filter to Block Band 5 Channel A for 50 Ohm Cell Phone Signal Boosters

Channel Filter to Block Band 5 Channel A for 50 Ohm Cell Phone Signal Boosters

Regular price $150.00 USD Sale price$125.00 USD

Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.

Free Lifetime Support. SKU / Model: 860003

Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

Description
Reviews
Questions & Answers
Make An Offer
Warning

Description

Product Description

Channelized Filter to Block Band 5 Channel A (50 Ohm) | WilsonPro 860003 by Wilson Electronics / weBoost.

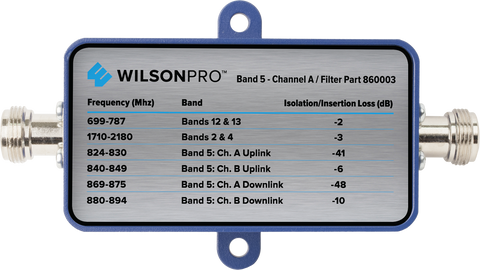

Wilson Pro Channel Filter Blocks Band 5 Channel A for 50 Ohm Cell Phone Signal Boosters. Wilson 860003 has a type "N" Connector to fit 50 Ohm wireless boosting systems. Please see product image, or chart below - for exact amount of signal blockage for each frequency range (Maximum blockage for uplink and downlink on Channel A, Band 5). It serves as a filter for cell phone frequency.

Channelized filters are a powerful tool to fine-tune cellular signal booster systems for optimum performance. System installers employ a filter to attenuate incoming non-essential cell signals carried on the specific Band 5, Channel A. This allows essential signals on other channels (for example, Channel B on Band 5 frequency) to be amplified at full strength.

How it works.

Mobile signal booster systems amplify cell signals across full frequency bands. However in some cases, amplifying all signals on band 5 can cause signal overload, a condition in which a specific carrier's signal is too strong.

In accordance with FCC regulations, an overload condition causes the booster system to automatically reduce power or perhaps shut down completely. Use of this Wilson Electronics 860003 channel filter can correct this overload condition, allowing the system to continue to amplify signals at full strength.

Please note: No cable included with this B5 Channelized Filter Channel A (N Connector). Thank you.

Amount of signal blocking for each frequency range by this Band 5 Channel A Filter Part # 860003:

Frequency (MHz)	Band	Isolation / Insertion Loss (dB)
699-787	Bands 12 and 13	-2
1710-2180	Bands 2 and 4	-3
824-830	Band 5: Ch. A Uplink	-41
840-849	Band 5: Ch. B Uplink	-6
869-875	Band 5: Ch. A Downlink	-48
880-894	Band 5: Ch. B Downlink	-10

Reviews

Customer Reviews

Questions & Answers

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Data Sheet / User Guide

Make An Offer

We would very much like you to try our product(s) and services. To that end, we would like to extend an opportunity for you to make a reasonable offer on this item that you feel is fair. Do consider the fact that we already offer promotional discount code (coupon code) for 10% off on most products (order total $300+ required, some restrictions apply). Try coupon code, 10BFCM at the checkout for 10% off, now! If it does not work for an item that you're buying or if you still wish to make an offer, please complete & submit the form below. We will respond right away during business hours.

Product Name
Quantity*

This field is required. Please enter a value.
Offer Amt. Per Unit* $

This field is required. Please enter a value.
Your Email*

This field is required. Please enter a value.
Your Phone
(no spaces/characs)*

This field is required. Please enter a value.
*

Input Correct Captcha
Do Not Fill This Out

Warning

Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.

Kevin K. of Anderson, California gave the following review:

Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.

Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.

If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.

For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
