Product Description

Channelized Filter to Block Band 5 Channel B (50 Ohm) | WilsonPro 860004 by Wilson Electronics / weBoost.

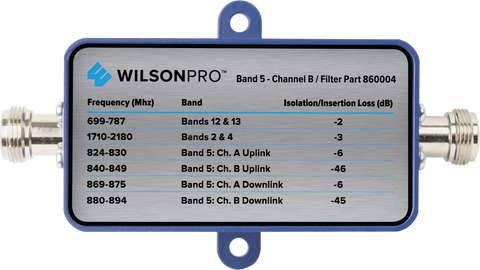

Wilson Pro Channel Filter Blocks Band 5 Channel B for 50 Ohm Cell Phone Signal Boosters. Wilson 860004 has a type "N" Connector to fit 50 Ohm wireless boosting systems. Please see product image, or table below - for exact amount of signal blockage for each frequency range (Maximum blockage for uplink and downlink on Channel B, Band 5). It serves as a filter for cell phone frequency.

Channelized filters are a powerful tool to fine-tune cellular signal booster systems for optimum performance. System installers employ a filter to attenuate incoming non-essential cell signals carried on the specific Band 5, Channel B. This allows essential signals on other channels (for example, Channel A on Band 5 frequency) to be amplified at full strength.

How it works.

Mobile signal booster systems amplify cell signals across full frequency bands. However in some cases, amplifying all signals on band 5 can cause signal overload, a condition in which a specific carrier's signal is too strong.

In accordance with FCC regulations, an overload condition causes the booster system to automatically reduce power or perhaps shut down completely. Using Wilson Electronics 860004 channel filter can correct this overload condition, allowing the system to continue to amplify signals at full strength.

Please note: No cable included with this B5 Channelized Filter Channel B (N Connector). Thank you.

Amount of signal blocking for each frequency range by this Band 5 Channel B Filter Part # 860004:

Frequency (MHz)	Band	Isolation / Insertion Loss (dB)
699-787	Bands 12 and 13	-2
1710-2180	Bands 2 and 4	-3
824-830	Band 5: Ch. A Uplink	-6
840-849	Band 5: Ch. B Uplink	-46
869-875	Band 5: Ch. A Downlink	-6
880-894	Band 5: Ch. B Downlink	-45
