Comba USA FirstNET Public Safety 2W Class B BDA, Dual Band, 27dBm, 110VAC
Comba USA FirstNET Public Safety 2W Class B BDA, Dual Band, 27dBm, 110VAC
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: RX7W22-78B327AC
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Make An Offer
- Warning
Description
Product Description

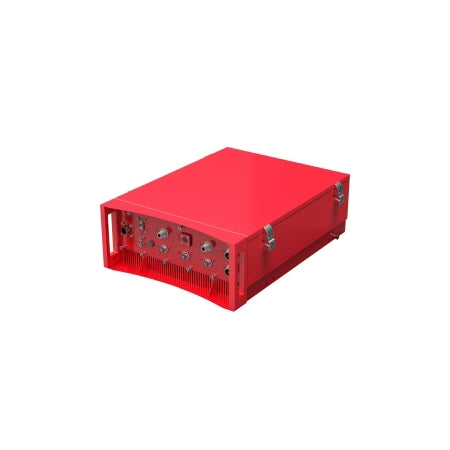

Comba CriticalPoint 2W USA Public Safety Class B BDA/Repeater (RX7W2278B327AC) operates on 700MHz and 800MHz Dual Bands. It supports the new FirstNET emergency wireless network. Comba USA FirstNET Public Safety 2W Class B BDA, with 700 MHz plus 800 MHz Dual Band coverage offers 27 dBm uplink and downlink power with 110VAC electrical source. Comba Telecom 700MHz/800MHz Dual Band Class-B (27dBm, 110VAC) is a top-notch public safety BDA/repeater. Also features 90dB gain and 27 dBm downlink and uplink composite power backed up by a three-year manufacturer warranty and supports Band 14 FirstNet LTE.
Specifications:
| Supported Bands: | 700 PS and 800 SMR/PS. |
|---|---|
| Uplink Frequencies: | 788-805 MHz and 806-824 MHz. |
| Downlink Frequencies: | 758-775 MHz and 851-869 MHz. |
| Uplink Composite Power: | 27 dBm. |
| Downlink Composite Power: | 27 dBm. |
| Gain: | 90 dB. |
| RF Connectors: | Type N-Female. |
| Gain Adjustment Range (GAR): | 0-30 dB. |
| Power: | 110VAC. |
| Dimensions: | Height 20.9", Length 8.3", Width 15.4". |
| Weight: | 51 lbs. |
| UPC: |
729198662431. |
| Warranty: | Three Years. |
WARNING:
Per FCC laws and regulations, this INDUSTRIAL GRADE device must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please submit public safety signal booster installation questionnaire for a quote if you require professional installation and assistance with consent and approval process.
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
