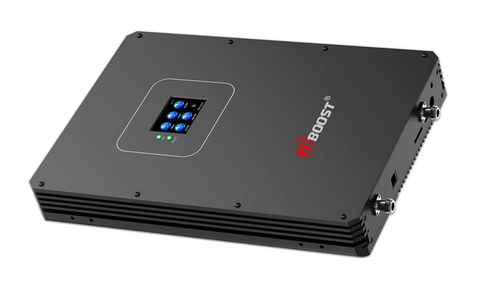

HiBoost Industrial 100K 5G Signal Booster (model # F27K-6S-IoT) is a powerful cellular signal booster that helps amplify signals in locations with poor or unreliable signals. It can amplify all carriers’ 3G, 4G, and 5G signals for mobile device users, providing clearer voice and faster data download speeds.

• Working Bands:Band 71 / Band 12 / Band 13 / Band 5 / Band 2 / Band 4.

• Uplink Frequency Range: 663-698 / 698-716 / 776 – 787 / 824-849 / 1850-1915 / 1710-1755.

• Downlink Frequency Range: 617-652 / 728-746 / 746 – 757 / 869-894 / 1930-1995 / 2110-2155.


For up to 100,000 square feet, it provides a phenomenal up to 85 dB Gain. Output power of this kit is comparable to WilsonPro 4300.

Critical Details:

• Networks Covered: 3G, 4G LTE, 5G,

• Max. Gain: 85 dB.

• Six band design covers all US and Canadian carriers.

• Compatible with NR600, Cellular 800, PCS1900, AWS2100, Upper and Lower 700 LTE Bands.

• Covers up to 100,000 square feet in a typical indoor larger commercial area.

• Automatic and Manual Gain Control function.

• LED touchscreen displays system gain, output power, and alarms for easy local control and monitoring.

• USA FCC (ID: OWWF27K6S) and IC Industry Canada (ID: 10527A-F27K6S) certified.

• Streamlined design and low power consumption to minimize cost during operation and low heat dissipation

• Quality metal construction, strong and durable.


Our team stands by the quality and reliable performance of our products through the HiBoost Guarantee. We will repair or replace any product for up to three years after purchase.

Benefits:

Integrated with the Signal Supervisor App: Maximize the booster power output by optimizing the indoor and outdoor antenna positions.

Boost Performance for Every Carrier: Users can boost signal for any type of cellular device on any network such as AT&T, T-Mobile, Verizon, Sprint and US Cellular. Improve data speeds and voice quality for cell phones, tablets and hot spots.

True Heat Sink Design: The booster has an integral aluminum design that acts as a heat sink for the unit. High heat components on the circuit board are carefully bonded to the aluminum chassis to ensure that the system can remain cool during operation.

LCD Display: View the booster performance by using the LCD display of gain and power output data.

Optimized Antenna System: The signal meter tool on the HiBoost Signal Supervisor app will help users find the best position for the outdoor antenna.

Remote Monitoring: Ensure that the booster is performing properly by setting up push-notifications and monitoring your booster from anywhere at all times.

Dedicated Technical Support: Need help with installing a booster? Chat with the HiBoost technical support directly from the Signal Supervisor app for remote troubleshooting.

HiBoost's Industrial Cellular Booster/ Amplifier/ Repeater Kit is a wide band booster that amplifies signals of all cellular operators in USA & Canada. It boosts wireless signals for clear voice, and fast mobile internet uploads and downloads. It improves wireless reception over up to 100000 sq. ft. with capacity to support up to 200 cell phone and device users simultaneously. Now everyone can now enjoy the freedom of clear calls and constant high speed data within your retail store or business office space/ apartment building.

Hi Boost 100,000 Kit is a full duplex mobile communication repeater from the manufacturer, Huaptec. It is the perfect solution for providing a wireless improvement of cellular reception in a high-rise building, basement, hotel, shopping mall, tunnel, etc. A single signal repeater can boost indoor coverage over up to 100K square feet of indoor spaces.

They are designed to improve the signal quality of an area by receiving signal from outside from all USA cellular service providers such as AT&T, Sprint, Verizon, T-Mobile and from Canadian mobile service providers such as Bell Mobility, Telus, and Rogers Wireless. It then amplifies that exterior signal from the base station using the cellular repeater or amplifier. Thereafter, it channels that signal to all areas of need indoors.

This repeater has Manual Gain Control (MGC) feature that enables engineers to reduce the gain of the repeater manually if oscillation or too strong input power level is detected during installation. This helps to get the best coverage effect without any interference back to the mobile network. To maintain safe and specific output signal levels during the repeater’s operation, this repeater has a built-in signal oscillation detection circuit to adjust the gain automatically so as to avoid interference to the cellular network.

It also has color changing LED lights to indicate its environmental status: the Alarm LED’s located on the front of the unit (Alarm Low & Alarm High) will change color from green to orange or red, (depending on the input power level) if the system detects signal oscillation in either band or if input signal is beyond a safe limit.

Cell Phone Signal Booster Kit Features:

• Boosts Talk & Text and Data Transfer Speeds.
• Strongest cell phone signal booster for Large Apartment Buildings, Malls, and Office Buildings up to 100,000 sq. ft.
• Up to +85 Decibel Gain.
• All 2G, 3G, 4G, 5G standards are supported.
• Supports up to 200 users simultaneously.
• MGC and AGC function (See below for details).
• LCD indicator for all controls.
• Self-oscillation protection.
• Good heat dissipation for longevity.
• Wide power supply range and lower power consumption.
• 3 Year Warranty.
• IC Industry Canada and FCC USA Certified and Approved.

Key Benefits:

• Streamlined design.
• Reduce isolation requirements and installation cost.
• Easy for site survey, system installation and maintenance.
• Compatible with all cell devices.
• Compatible with all cell phone service providers.
• Designed for installations by FCC licensees and qualified certified installers.
• This complete signal booster kit purchase includes everything needed for installation.
• Amplifier has good quality metal construction that is strong and durable.

Cell Phone Signal Booster Purchase Only Includes:

1. Hi-Boost 85 dB industrial cell phone booster amplifier.
2. Power Supply and Adapter.
3. User manual and installation guide.

Note: Outdoor and indoor antennas and cables must be purchased separately. Choose either a Yagi exterior directional antenna (50 Ohms) or Omni exterior omnidirectional antenna (50 Ohms). Consider purchasing interior antenna expansion kits (50 Ohms) for multiple indoor antennas. Please contact us if you need assistance.

Smart HiBoost Functions:

AGC and MGC.

Hi Boost Pro Quint 4G LTE Industrial LTE Booster Kit (F27-5S model) is equipped with smart MGC and AGC functions. AGC automatically controls system gain according to input signal in your area. It balances booster power in order not to interfere with mobile operator's networks.

Thanks to the MGC function, it is possible to increase or decrease booster gain manually!

Indication LEDs.

Thanks to indication LEDs on booster interface, it is easy to keep an eye on booster's current working state. Alarm LED will also warn you if there's any oscillation or trouble which can then be corrected.

Specifications:

• Working bands: Band 71 / Band 12 / Band 13 / Band 5 / Band 2 / Band 4.
• Upload Frequency Range: 663-698 / 698-716 / 776 – 787 / 824-849 / 1850-1915 / 1710-1755.
• Download Frequency Range: 617-652 / 728-746 / 746 – 757 / 869-894 / 1930-1995 / 2110-2155.
• Supported Standards: WCDMA, UMTS, CDMA, HSPA+, EVDO, LTE, NR and all cellular standards.
• Maximum Gain: Uplink 80 dB/ Downlink 85 dB.
• Maximum Output Power: Uplink 23 dBm/ Downlink 27 dBm.
• MGC (Step Attenuation): 31 dB/ 1 dB Step.
• I/O Port: N-Female.
• Impedance: 50 ohm.
• Environment Conditions: IP40.
• Dimensions: 11 x 15.7 x 2.1 inches.
• Weight: 17.6 Lbs. or 8 Kg.
• Power Supply: Input AC 100~240V, 50/60Hz, Output DC 12V / 8.5 A.

WARNING. Per FCC laws and regulations, this INDUSTRIAL GRADE device must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please contact us for a quote if you require professional installation and assistance with consent and approval process.
