Pro Signal Security 4G M2M Booster + Omni Antenna | 461119/ 471119
Pro Signal Security 4G M2M Booster + Omni Antenna | 461119/ 471119
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: 461119/471119
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Data Sheet / User Guide
- Make An Offer
- Warning
Description
Product Description
weBoost/ Wilson Pro Signal 4G LTE IoT / M2M cell signal booster with AC Power Supply and Omni antenna. For Internet of Things and Machine to Machine devices used inside cellular connected applications. Such applications include vending machines, Bank Automated Teller Machines (ATM), and any application that uses mobile connectiviy to tranfer wireless data, usually without human intervention. It is a direct-connect signal booster meaning the cable from amplifier directly connects to the cellular modem, tracking, monitoring and other cellular data device containing a SIM card to ensure signal reliability and increase data speeds in poor signal environments. That SIM card requires consistent wireless connectivity to operate the M2M or IoT machine properly by utilizing paid wireless subscription service.
It is a direct-connect signal booster meaning the cable from amplifier directly connects to the cellular modem, tracking, monitoring and other cellular data device containing a SIM card to ensure signal reliability and increase data speeds in poor signal environments. Therefore, it cannot be used for smartphones today that practically never have a direct antenna port connection. If you need to improve signal on a smartphone, you need a wireless cell phone signal booster.
The SIM card in a cellular device such as cellular modem or mobile hotspot device like Mi-Fi (not a mobile hotspot created in a smart phone because that won't have an antenna port to connect cable that comes with this M2M direct connection kit) requires consistent wireless connectivity to operate the M2M or IoT machine properly by utilizing paid wireless subscription service. This kit helps provide that consistent connectivity.
Only one cellular device can be connected for signal booster because this is a direct connection signal booster kit but that application can be limitless. For example, that mobile device can be a cellular modem, data card, lotto machine, remote monitoring system within an alarm system, wireless remote monitored signage, fleet monitoring system, mobile hotspot device such as Mi-Fi, Jetpack, etc. - as long as it has an exterior antenna port consisting of SMA female connector to connect the cable with its SMA male connector. Original weBoost M2M Cell Booster Kit SKU # 471119 or wa471119 (USA). Current Wilson Pro M2M Cell Booster Kit SKU # 461119 or wa461119 (USA).
This USA version works for all cellular service providers in USA such as AT&T Wireless, Verizon Wireless, T-Mobile, and Sprint. Boost signal reception inside Machine to Machines and Internet of Things with stronger connection with respective network's cell tower. Strong connection means fewer disconnects and redialling, less loss of data due to lack of realtime wireless connectivity, and fewer Internet hang-ups or freezing / buffering.
Enjoy fast 3G + 4G LTE mobile internet downloads and uploads in your M2Ms and IoTs after installing this M2M and IoT cellular signal amplifier kit. WilsonPro Signal 4G LTE kit is easy to install. It installs easily using DIY installation instructions included. It is self-regulating, plug and play, automatically adjusts antenna signal gain as needed, and requires no maintenance after it is installed. This is a new security panel cell signal booster kit version is designed especially for Security Panels.
Product Highlights.
- Amplifies 3G and 4G LTE for any IoT or M2M System.
- Complete kit with all parts included and easy to install.
- Works with all service carrier networks in USA.
- Most popular M2M signal booster kit.
- Direct Connect Signal Booster Kit Maximum Gain: +15 dB.
Product Overview.
This leading M2M signal booster in USA features up to +15 dB gain of power, allowing it to enhance 3G & 4G LTE cell service for all wireless cellular devices on any carrier in North America.
There're no monthly fees nor does it need to be connected to any internet source (wifi or landline) to work. It simply amplifies outside existing cellular service up to 32X for faster, with more reliable data.
The product is backed by 24-hour US-based customer support, a 2-year manufacturer warranty, lifetime technical support and a 60-day better signal or money back guarantee.
Benefits.
- Longer Battery Life.
- Dead zones reduced or eliminated.
- Faster Wireless Data Transfer Uploads and Downloads.
- Improves reception to M2M/ IoT modem inside retail or commercial cabinets.
- Provides consistent mobile network connection to prevent disconnection and redials.
Who will benefit?
Any business owner, manager, IT technician that deploys and maintains M2M applications including:
- Long-distance product control.
- Remote monitoring & security.
- Real-time device-to-device communications.
- Fleet management: Transport logistics & telematics.
- Automated two-way quality assurance solutions.
From off-the-grid fleet to a vending machine, the Signal 4G amplifies signal to, and from the closest cell tower.
Carriers Supported.
weBoost 461119 or 471119 Signal 4G M2M can be used with all USA carrier networks.
How does it Work?
Mobile signal amplifier kit picks up existing weak signals outside using omni directional high-gain antenna. Then it sends that signal to signal amplifier inside the IT machine cabinet for amplification numerous times using Wilson Booster's patented SmarTech III technology. The boosted signals easily bypass all interior and exterior obstructions. It provides the signal directly to the cellular modem inside which then successfully implements required wireless data connections and transfers.
Please note that there must be some signal strength for exterior antenna to boost. Cut off point is -105dB which is practically a dead zone. If there's no signal to amplify, even a direct-connect signal booster like this one will not help keep cellular modem connected consistently to mobile network. A Distributed Antenna System (DAS) or Small Cell Technology signal enhancing system will be required in those instances when there's no cellular service outside where external antenna can be installed. Please refer to brief version of Wilson Pro Security 4G Installation Guide for basic installation details.

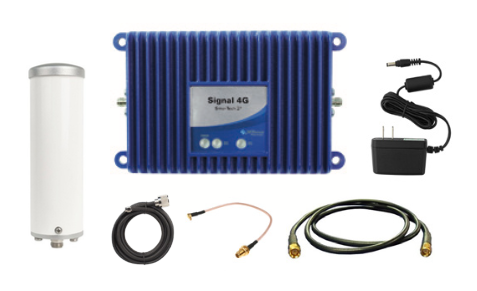

Signal 4G direct-connect cell signal booster kit (item # 461119 or 471119) includes:
- Pro Signal 4G M2M Cell Phone Amplifier/ Repeater (WilsonPro 461019 or weBoost 471019. Product #: U461019 / U471019).
- 50 Ohm Omni Antenna (304422).
- 30 feet RG58 SMA-Male to N-Male Connector (955833).
- 10 feet RG58 SMA-Male to SMA-Male Connector (955834).
- AC/DC Power Supply 5V/4A (850003).
- SMA Female - MCX 12” Adapter (951153)/(951154).
- Installation Manual and Instructions.
Specifications of Amplifier Model Number 461019 (Wilson Pro branded) / 471019 (weBoost branded).
| Frequency | 700 MHz - Band 12/ 13/ 17, 850 MHz - Band 5, 1700/ 2100 MHz - Band 4, 1900 MHz - Band 2. |
|---|---|
| Maximum Gain | 17 Decibels (dB) |
| Voltage / Power | 5.5V DC, 2A |
| Connectors | SMA-Female |
| Dimensions | 3.3 x 1.9 x 0.8 inches |
| Weight | 0.18 lbs (amplifier only). |
| 461119 or 471119 (USA) UPC | 811815026105) |
Installation.
Wilson WL-461119 M2M cell booster kit is very easy to install with all required components and installation instructions included with M2M/ IoT signal amplifier kit.
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
Can this amplifier Pro Signal Security 4G M2M Booster #46119 / 47119 support more than one cell phone at the same time if routed to a MOFI Wireless cell router?
Yes, it basically enables the router to have better connectivity with cell tower. Therefore, the router is what will support as many cellular devices as the it has capacity to support.
Data Sheet / User Guide
Data Sheet
User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
