Description
Product Description
RG-58 Coaxial Cables two to thirty feet by weBoost / Wilson Electronics (WilsonPro).
2 ft. to 30 ft. RG58 low loss coaxial cables for indoor/ outdoor cable connections between signal amplifier to both inside or outside antennas. "Low loss" means that they incur a low loss of under 1dB. Signal loss per 10 ft. on 700 MHz is 1.7 dB. Signal loss per 10 ft. on 1 GHz is 2.2 dB.
RG stands for "Radio Guide". It is a military term. The 58 class of cables have their outer diameter at 0.20 inches. They have 50 Ohms impedance. They can transmit up to 500 watts of High Frequency (HF) power. RG58/U has a solid center conductor of 20 AWG bare copper. Its capacitance is 28.5 pF per foot.
Please note that RG58 cables incur higher signal loss than Wilson-400 cables due to cable loss being higher in thinner cablings. RG58 cables are thinner than Wilson400 cables. If choosing which antenna to connect this cable to, we recommend the inside antenna because you don't want to lose signal from the outside antenna because that is where the power comes from.
Wilson Pro cables are available in all sizes from small 2 feet to 30 feet long. Choose the size you need from the drop-down menu provided above. They have 50 Ohm Impedance. While these coax cables are manufactured by Wilson Electronics, some cables may be branded under their premium brand name, weBoost. Use shortest signal length possible or use thicker Wilson 400 cabling. This cable should be okay though to use but should be used sparingly because it incurs much higher signal loss than Wilson-400 cables.
Part # |
Description |
Price |
955802 |
2 ft. RG58 Low Loss Foam Coax Cable (N Male to SMA Male connector). UPC: 811815020271. |
$12.99 |
955805 |
5 ft. RG58 Low Loss Foam Coax Cable (SMA Female to SMA Male connector). UPC: 811815021599. |
$7.99 |
955812 |
10 ft. RG58 Low Loss Foam Coax Cable (N Male to SMA Male connector). UPC: 811815020400. |
$11.99 |
951147 |
10 ft. RG58 Low Loss Foam Coax Cable (SMA-Male to SMA-Female connector). UPC: 811815020677. |
$15.99 |
955815 |
15 ft. RG58 Low Loss Foam Coax Cable (SMA Female to SMA Male connector). UPC: 811815021179. |
$18.99 |
955822 |
20 ft. RG58 Coax Cable Assembly (N Male to SMA Male connector). UPC: 811815021056. |
$19.99 |
951148 |
20 ft. White RG58 cable (N-Male to N-Male connector). UPC: 811815021087. |
$29.99 |
295834 |

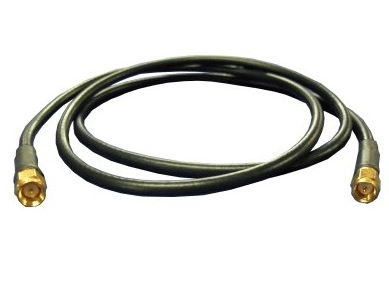

10 ft. RG58 cable (SMA male to SMA male connector). UPC: 682962482973. |
$33.99 |
950623 |
25 ft. RG58 cable (SMA male to SMA male connector). UPC: 811815027423. |
$25.99 |
955832 |
30 ft. RG58U coax (SMA male to SMA female connector). UPC: 811815023876. |
$22.99 |
