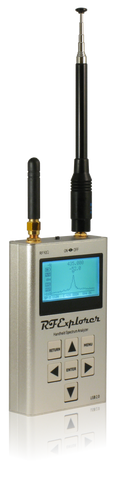

RF Explorer Handheld Spectrum Analyzer:
- Pocket size, light weight, rechargeable by USB.
- High capacity Battery for 16 hrs+ of continuous run.
- Solid aluminum metal case plus transport carry case.
- Upgraded firmware v1.09 with lifetime free firmware revisions.
- Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes.
- Wide band coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz. This includes HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Data Sheet / User Guide
- Make An Offer
- Warning
Description
Product Description
Installer signal meter and accessory kit helps make installation of cellular signal booster kits easier. Along with handheld lithium Ion battery powered signal detector, it includes a 10 ft. cable and connector to help any installer to connect coax cable and/or antennas directly to meter to help troubleshoot the signal amplifying system.
The handheld signal spectrum analyzer (RF Explorer) detects signal strength from -115 dBm to 0 dBm on frequencies ranging from 15 MHz to 2700 MHz (see data sheet for details). The 10 feet RG58 cable with N-Male to SMA-Male connector and a N-Female to N-Female barrel connector helps connect signal meter to exterior Omni or Yagi/ Log-Periodic antenna to test signal strength achieved in various locations and positions.
This affordable signal meter with cable and connector accessory kit helps to easily detect the distance, strength and direction of existing wifi & cell signals making it an effective tool for wi-fi & cell phone signal booster installations. RF Explorer 3G Combo is delivered with upgraded firmware v1.09 with lifetime free firmware revisions! Reduce the cost and implementation time of any cellular or WiFi reception boosting project with this powerful little tool that covers a wide range of frequencies including all mobile & cellular frequency bands.
Features.
- Light weight and pocket size.
- Durable aluminum case.
- Detects distance, strength and direction of cell and WiFi signals.
- Calculates Max Hold, Peak Max, Overwrite, Normal and Averaging.
- Suitable for use outdoors and indoors with 128×64 backlit LCD screen to provide excellent visibility.
- Frequencies from 15 MHz to 2700 MHz (2.7 GHz) can be detected.
- Included whip telescoping external antenna can be attached via two SMA-female connectors.
- Connect any other cable or antenna fitted with SMA-male connectors.
- More than 16 hours runtime provided by high capacity Lithium Ion battery.
- Built-in battery recharges via Mini-USB 2.0 connector.
- Custom extensions and solutions can be developed via the open USB Communication protocol.
- Free, Open Source software available for Microsoft Windows and Mac OS.
- Free, lifetime firmware upgrades.
- New features may be requested through the user community.
Usage.
RF Explorer has been designed for signal booster system installers to detect signal distance, strength and direction when installing and troubleshooting wireless systems e.g. weBoost, SureCall, HiBoost, and Wilson Pro signal booster systems by Wilson Electronics.
This unit has been designed to be intuitive and easy to use without having to read complicated manuals to understand its advanced functionality. Most of the intricacy typically found in full sized Spectrum Analyzers has been simplified with functionality that is automatically resolved by the firmware. Based on an integrated double balanced mixer and frequency synthesizer, the unit offers compact size, high performance and low consumption, all at a low cost.
Two SMA connectors are provided for the two antennas included - a whip helical for the 2.4 GHz band and a wide-band telescopic antenna for Sub-GHz frequencies.
Accessories included.
- RF Explorer signal meter.
- Helical whip antenna for frequencies above 1000 MHz.
- Wideband telescoping antenna (Nagoya NA-773) for frequencies below 1000 MHz.
- Hard-sided case (black).

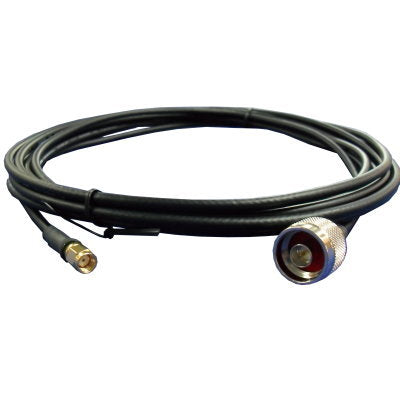

- 10 feet RG-58 cable with N-Male connector to SMA-Male connector (SKU: 955812).
- N-Female to N-Female barrel connector (SKU: SC-CN-01).
Notes.
Sorry, we do not rent RF signal detectors. Secondly, we have had too many instances of returns after use when no longer needed. Therefore, units that are operating as intended may not be returned for refund. Faulty units will only be exchanged under manufacturers warranty.
Frequencies detected.
Frequencies that can be detected by the RF Explorer signal meter are listed below.
|
Frequency range |
Allocation |
|
26.96 to 27.41 MHz |
Citizens band radio (CB) |
|
40 MHz |
Alarm systems and Garage door openers |
|
40 to 50 and 900 MHz |
Newer Cordless phones |
|
49 MHz |
Baby monitors |
|
50 to 54, 144 to 148, 216 to 220, 222 to 225 420 to 450, 902 to 928, 1240 to 1300, 2300 to 2310 and 2390 to 2450 MHz |
Amateur radio (ham radio) |
|
54 to 88 and 174 to 216 MHz |
VHF television (channels 2–6, 7–13) |
|
88 to 108 MHz |
FM radio |
|
108 to 117.975 and 1559 to 1610 MHz |
Global Positioning Systems (GPS) |
|
462.5625 to 467.7125 MHz |
Family band radio |
|
470 to 698 MHz |
UHF television (channels 14–51) |
|
699 to 787 MHz |
SMH Cellular blocks |
|
814 to 894 MHz |
CLR Cellular blocks |
|
1710 to 1755 and 2110 to 2155 MHz |
AWS Cellular blocks |
|
1850 to 1995 MHz |
PCS Cellular blocks |
|
2305 to 2315 and 2350 to 2360 MHz |
WCS Cellular blocks ("WiMax") |
|
2400 to 2484 MHz |
WiFi (802.11b/g/n), Bluetooth and older cordless phones |
|
2496 to 2690 MHz |
Cellular (BRS/EBS) |
Specifications
|
Usage |
Commercial |
|
Impedance |
50 Ω |
|
Connector Type |
2 x SMA-female |
|
Frequency Range |
15 MHz to 2700 MHz |
|
Frequency Span |
112 kHz to 600 MHz |
|
Amplitude Resolution |
0.5 dBm |
|
Dynamic Range (Left SMA Port) |
−115 dBm to 0 dBm |
|
Dynamic Range (Right SMA Port) |
−110 dBm to −10 dBm |
|
Max Input Power (Left SMA Port) |
+5 dBm |
|
Max Input Power (Right SMA Port) |
+30 dBm |
|
Average Noise Level (Typical) |
−110 dBm |
|
Frequency Stability & Accuracy (Typical) |
±10 ppm |
|
Amplitude Stability & Accuracy (Typical) |
±6 dBm |
|
Frequency Resolution |
1 kHz |
|
Resolution Bandwidth (RBW) |
3 kHz–600 kHz (automatic) |
|
Graphics LCD |
128 x 64 pixels |
|
LCD Backlight |
5 levels |
|
LCD Contrast |
10 levels |
|
RF Impedance |
50 Ω |
|
RF Absolute Max. Input Power |
+30 dBm |
|
RF Max. Measurable Input Power |
-5 dBm left; -10 dBm right |
|
RF Generator Power |
Not available |
|
WiFi Analyzer |
13 channels |
|
DSP |
Filter/Fast |
|
Frequency Stability & Accuracy |
±10 ppm, typical |
|
Amplitude Stability |
±1 dBm, typical |
|
Amplitude Accuracy |
±3 dBm, typical |
|
RF DC Decoupled |
Yes, both |
|
Max RF DC Voltage |
16 V |
|
Windows PC Client Tool |
32/64 bits |
|
RS232/USB API |
Yes |
|
Internal CPU (MIPS) |
16 |
|
Extra RAM |
64KB |
|
Extra ROM |
2MB |
|
Included Antenna |
NA-773 + Whip 2.4G |
|
Size |
4.4 x 2.6 x 0.98 in | 113 x 70 x 25 mm |
|
Weight |
7.8 oz | 220 g |
Warranty.
RF Explorer products are guaranteed for 2 years against defects in materials and/or workmanship. This warranty is void if any component or accessory is deemed to have been subjected to abuse, misuse, neglect, or mishandling that changes or damages the electronic or physical properties of the product.
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
