CloseSureCall Industrial Public Safety Booster (PSB) Guardian3 / Force3
SureCall Industrial Public Safety Booster (PSB) Guardian3 / Force3
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: SC-TriPSB-80
Sorry, this item is discontinued and replaced with the newest version, SureCall Responder public safety signal booster kit.
SureCall Guardian 3/ Force 3 Public Safety Signal Booster Highlights:
- Bi-Directional Amplifier for Public Safety Bands up to 80,000 sq. ft.
- Tremendous capacity: Supports 100+ simultaneous users.
- Built-in safeguards eliminate interference to public safety network.
- Software upgradable in the field.
- Independently adjustable uplink and downlink.
- Lowest out of band emissions.
- Industry leading 3-year warranty.
- Auto Gain Control (AGC) and automatic shut down.
- Includes NEMA enclosure - Meets NEMA 4 type requirements.
- Stealth technology incorporated - uplink becomes dormant when not in use, providing power-saving operation.
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Data Sheet / User Guide
- Make An Offer
- Warning
Description
Product Description
SureCall Industrial Public Safety Signal Booster (PSB) Guardian-3 / Force-3, is a public safety bi-directional amplifier for three band industrial communications. It is now discontinued and replaced with a better system - Consider the newer SureCall Guardian 3 QR (Quick Response) with built-in remote monitoring system.
SureCall Guardian 3 is a bi-direction amplifier for Police Headquarters, Hospitals and other First Responders. This Sure Call Force-3 PSB (Public Safety Booster) services the full Public Safety 700MHz and 800MHz bands as well as the 900MHz SMR (Specialized Mobile Radio Service). This 3 band industrial grade wireless booster significantly improves the quality of crucial First Responder communications in USA and Canada. With powerful 80 decibel dB Gain on tri-band frequencies, it also features manually adjustable Public Safety bi-directional amplifier for areas up to 80,000 sq. ft.
SureCall Guardian3 is a Tri-Band Bi-Directional amplifier that provides consistent signal strength for Public Safety Bands 700MHz & 800MHz and 900MHz SMR (Specialized Mobile Radio Service). The Guardian3 signal booster significantly improves the quality of crucial First Responder communications in buildings across United States and Canada with weak signal strength. SKU: SC-TriPSBS-80 / SC-TriPSB-80 / SC-TriPSB80 / SC-TriPSBS80/ SC-TRIPSBN-80. UPC: 858507006212.
SureCall Industrial Public Safety Booster (PSB) SureCall Guardian 3 / Force 3 has unique features that include the latest in network protection technology. It is independently reconfigurable for each band and digitally adjustable uplink and downlink. It has built-in safeguards that eliminate interference to public safety network. It offers the industry’s best three-year warranty. Its software is upgradable in the field. It has stealth technology incorporated inside it whereby uplink becomes dormant when not in use, providing green, power saving operation. It has independently, digitally adjustable uplink and downlink. It boasts device self-diagnosis and self-protection. It offers lowest out of band emissions (OOBE) to date.
This is a triple band public safety industrial cell phone signal booster system. Its key features include its embedded CPU for each band for smarter technology uplink and downlink oscillation detection. Its auto gain control (AGC). Automatic shut down upon detection of oscillation. Quality metal construction that is durable and resilient. It has compartmentalized design which increases clarity and reduces noise. It offers tri-band signal boost.
Industrial boosters require carrier approval from all carriers and installation by a professional installer. Please call us for details before purchase of an Industrial cell phone signal booster.
Wilson Electronics commercial grade booster brand Wilson Pro does not provide comparable product at this time. This is a SureCall Industrial Public Safety Booster kit. It consists of a tri-band manually adjustable Public Safety bi-directional amplifier for areas up to 80,000 sq. ft. It provides 80dB signal gain for instantaneous texting, fastest 3G and 4G LTE wireless data transfer speeds, and high call volume voice clarity.
From the manufacturer:
The SureCall Guardian3 amplifies signals for crucial communications inside police stations, fire departments and hospitals, delivering reliable and robust signal quality for the public safety officials relying on two-way radio communications.

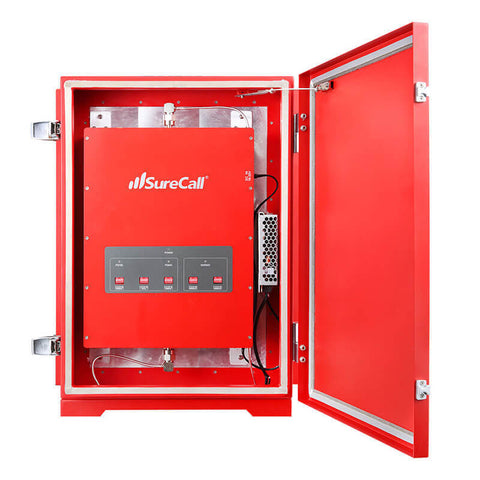

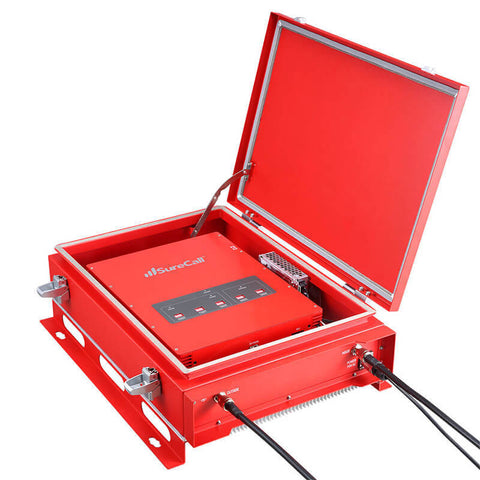

The Guardian3 tri-band booster increases signal strength for Public Safety Bands and SMR (specialized mobile radio service) inside buildings with weak signal strength. Guardian3 amplifies 700 MHz & 800 MHz and 900 MHz SMR frequency bands, covering up to 80,000 square feet and 100+ simultaneous users. The Guardian3 Industrial booster features sturdy metal construction and an industry leading 3-year warranty. Includes NEMA-4 rated enclosure.
Summary.
- Triband 700/ 800/ 900 MHz Public Safety Bidirectional Amplifier.
- Built-in safeguards eliminate interference to public safety network.
- Software upgradable in the field.
- Stealth technology incorporated - uplink becomes dormant when not in use, providing power-saving operation.
- Independently, adjustable uplink and downlink.
- Lowest out of band emissions.
- Industry leading 3-year warranty.
Highlights:
- Embedded CPU for each band for smarter technology.
- Uplink/downlink oscillation detection.
- Auto Gain Control (AGC) and automatic shut down.
- Quality metal construction, durable and resilient.
- Compartmentalized design increases clarity and reduces noise.
SureCall Guardian3 Industrial Specifications:
| Frequency | Uplink: 788-805 / 806-824 / 896-901 Mhz; Downlink : 758-775 / 851-869 / 935-940 Mhz |
|---|---|
| Average Gain | 80 dB |
| Maximum Gain | Up to 80 Decibel gain. |
| VSWR | 2.0 |
| Standard Supported | XXX |
| AC Power Transformer | Input AC110V,60Hz; Output DC 5-15V |
| DC Power | 12V |
| Maximum RF Output Power | 3 Watts EIRP |
| Noise Figure | ≤8dB |
| RF connectors | XXX |
| Power Consumption | 90W |
| Dimensions | 14" X 11" X 3.5" |
| Weight | 8.05 lbs. |
WARNING. Per FCC laws and regulations, this INDUSTRIAL GRADE device must not be installed by consumers. It is designed for installation by QUALIFIED INSTALLERS only. You MUST have an express consent in writing from all Carriers in your service area to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Please contact us for a quote if you require professional installation and assistance with consent and approval process.
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
Is the Guardian Booster Nema 4 rated?
Yes, the Surecall Guardian 4 signal booster includes NEMA enclosure - Meets NEMA 4 type requirements.
Data Sheet / User Guide
Data Sheet
User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
