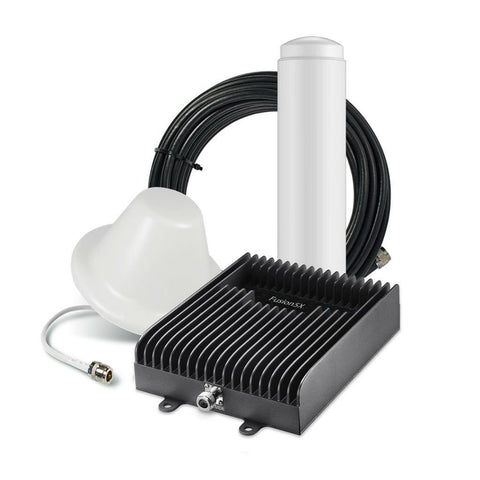

SureCall Fusion 5X | SC-Poly5X-72
SureCall Fusion 5X | SC-Poly5X-72
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: SC-Poly5X-72-OD-KIT
Note: Kits with single interior antenna do not include free bonus extra parts and accessories shown above. Only when you choose kits with four inside antennas, those extras will populate in the shopping cart. Thank you.
SureCall Fusion 5x cell phone signal booster for large buildings:
- Reduces dropped and missed calls. Improves 3G and 4G data speeds.
- Automatic dB gain/attenuation optimizes booster performance.
- Maximum reception strength gain, uplink and downlink power.
- Coverage for large buildings and warehouses, up to 20,000 Sq. Ft.
- Supports up to 15 users with multiple wireless devices, simultaneously.
- Expand indoor coverage further by purchasing add'l in-building antenna kits that include required cables and splitter to connect to this booster kit.
- Boosts voice, text, 3G, 4G reception of all U.S. cell providers. For Canada, choose Canadian Mid-Size Building Cell Phone Booster Kit.
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Data Sheet / User Guide
- Make An Offer
- Warning
Description
Product Description
SureCall Fusion 5X Building Cell Booster for up to 20K Ft².
SureCall Fusion5X Voice, 3G, 4G, LTE Home & Building signal booster kit with an Omni outdoor antenna and either 1 or 4 indoor Dome or Panel antenna options as shown in drop-down menu. SureCall Fusion 5X boosts reception to up to 20,000 sq. ft. Cellphone Mate/ Sure Call Fusion-5X fills the gap between the Fusion5s and the Force5 models. SureCall-Fusion5X is the first booster from Cellphone-Mate/ Sure-Call that does not include knobs! Instead, sophisticated software automatically controls the gain ensuring the Sure Call booster is operating at max performance at all times.
SureCall Fusion5-X provides up to 72 dB Gain in signal reception. Sure Call Fusion 5 X cell phone signal booster kit encompasses and boosts signals on five bands. It provides up to 20,000 square feet of coverage. It boosts reception for all American carriers voice, text and 4G LTE signals. USA Carriers include AT&T Wireless, Verizon Wireless, Sprint, and T-Mobile. For Canada, choose Canadian Mid-Size Building Cell Phone Booster Kit.
It is very reasonably priced to boost maximum possible area for lowest cost per square foot when compared to other booster kits or DAS (Distributed Antenna Systems). It is compatible with Sentry Remote Monitoring System. It boosts reception to up to 15 simultaneous users or mobile connections. It works just the same for all cell phone brands like Apple iPhone, Samsung, LG, HTC, OnePlus, ZTE, Motorola (Moto), Google Pixel XL/ Nexus models, Kyocera, Blackberry, Microsoft Lumia, and Nokia.
SureCall Fusion 5 X Overview:
- Boosts voice, text and 4G LTE signals for all American cell carriers.
- Automatic dB gain/attenuation optimizes booster performance without dials.
- Reduces dropped and missed calls and improves 4G LTE Data Speeds.
- Increases signal strength & extends battery life for all cellular devices.
- Supports up to 15 simultaneous users.
- Coverage for large buildings, up to 20,000 square feet.
What does this booster kit include?
The Fusion5X SC-Poly5X-72 (USA English Instructions) has four kit configurations:
- SC-Poly5X-72-OD4-Kit: Outdoor Omni antenna with 4 indoor dome antennas (UPC 858507006182).
- SC-Poly5X-72-OP4-Kit: Outdoor Omni antenna with 4 indoor panel antennas (UPC 858507006199).
- SC-Poly5X-72-OD-Kit: Outdoor Omni antenna with 1 indoor dome antenna (UPC 697691007458).
- SC-Poly5X-72-OP-Kit: Outdoor Omni antenna with 1 indoor panel antenna (UPC 858507006182).
This powerful amplifier Kit includes five 75 ft. SureCall SC-400 cables and one 30 ft. of SureCall 400 low loss coax cable, 4-way splitter, outdoor Omni antenna and EITHER four indoor dome antennas or four indoor panel antennas - Choose the most suitable one from drop-down options menu based on your needs or read differences below.
Here're more details on the 2 configurations of this kit with either Panel (Uni-directional) or Omni-directional inside antennas that help cover interior areas based of types of blueprints of areas to be boosted for cellular signal:
1. SureCall Fusion5X Omni Exterior Antenna with Four DOME Interior Antennas (part # SC-Poly5X-72-OD4-Kit).
Four Dome internal antennas as included in this kit are suggested when coverage needed inside the home or building is in a circular fashion as in an elliptical, round dome shaped, or a square room. Therefore, in-building omnidirectional dome antennas are best suited for a central location. They radiate in a linear horizontal fashion and are best for single floor level boosting. See diagram image of installation sketch provided showing 4 dome antennas installed.
2. SureCall Fusion 5X Omni Exterior Antenna with Four PANEL Interior Antennas (part # SC-Poly5X-72-OP4-Kit).
Four Panel internal antennas as included in this kit are suggested when coverage needed inside the home or building is across long rectangular spaces like a corridor and/or multi levels. For covering long rectangular spaces, the panel antenna can be mounted on the wall facing the length such long narrow spaces. For covering multiple floors, the panel directional antenna can be mounted on the ceiling facing downwards so it boosts reception to the spaces on the floors below as well. In-building unidirectional panel antennas allow for optimum reception to targeted areas. See diagram image of installation sketch provided showing 4 panel antennas installed.
3. SureCall Fusion5X Omni Exterior Antenna with One DOME Interior Antenna (part # SC-Poly5X-72-OD-Kit).
One Dome internal antenna kit is suggested when coverage needed is only about 10,000 sq. ft. inside the home or building. Furthermore, the coverage needed may be in a circular fashion as in an elliptical, round dome shaped, or a square room. Therefore, in-building omnidirectional dome antennas are best suited for a central location. They radiate in a linear horizontal fashion and are best for single floor level boosting.
4. SureCall Fusion 5X Omni Exterior Antenna with One PANEL Interior Antenna (part # SC-Poly5X-72-OP-Kit).
One Panel internal antennas kit is suggested when coverage needed is only about 10,000 sq. ft. inside the home or building. Furthermore, the coverage needed may be across long rectangular spaces like a corridor and/or multi levels. For covering long rectangular spaces, the panel antenna can be mounted on the wall facing the length such long narrow spaces. For covering multiple floors, the panel directional antenna can be mounted on the ceiling facing downwards so it boosts reception to the spaces on the floors below as well. In-building unidirectional panel antennas allow for optimum reception to targeted areas.
Fusion 5X Omni 4 Domes Part Numbers Included:
SKU: SC-Poly5X-72-OD4-Kit. UPC: 858507006182.
| SC-Poly5X-72. | Fusion5X Booster. |
|---|---|
| SC-288W. | Outdoor Omni Antenna. |
| SC-222W (x 4). | Indoor Dome Antenna. |
| SC-001-75 (x5) | SC400 Cable, 75 ft. |
| SC-001-30. | SC400 Cable, 30 ft. |
| SC-WS-4. | 4-Way Splitter. |
| SC-AC-12V3.8A-B. | Power Supply. |
Fusion 5X Omni 4 Panels Part Numbers Included:
SKU: SC-Poly5X-72-OP4-Kit. UPC: 858507006199.
| SC-Poly5X-72. | Fusion5X Booster. |
|---|---|
| SC-288W. | Outdoor Omni Antenna. |
| SC-248W (x 4). | Indoor Panel Antenna. |
| SC-001-75 (x5) | SC400 Cable, 75 ft. |
| SC-001-30. | SC400 Cable, 30 ft. |
| SC-WS-4. | 4-Way Splitter. |
| SC-AC-12V3.8A-B. | Power Supply. |
For cell phone signal booster installers:
Some kits have been kitted exclusively with 4 internal antennas for a few reasons:
- This gives cell phone booster installers flexibility to customize installations to meet a variety of needs inside of commercial buildings and large homes.
- Instills confidence in cell phone signal booster installers that he has enough gear to complete an install on the first visit.
- Happy installer = Happy end-user.
Note: The two kits (options 3 & 4 in drop-down options menu above) with single indoor antenna (panel or dome) will have only one 30 ft. and one 75 ft. cables (instead of one 30 ft. and five 75 ft. cables). Furthermore, they will not include splitter because no extra cables nor any splitter will be needed to install them.
All these 2G, 3G, 4G LTE indoor cell signal booster kits are compatible with following U.S.A. wireless service providers:
| American Service Providers |
|---|
| AT&T Wireless. |
| Boost Mobile. |
| C Spire. |
| Cricket Wireless. |
| Metro PCS. |
| Net10. |
| Shentel. |
| Simple Mobile. |
| Sprint. |
| Straight Talk. |
| T-Mobile USA. |
| Ting. |
| TracFone. |
| US Cellular. |
| Verizon Wireless. |
| Virgin Mobile USA. |
SureCall Fusion 5X Specifications:
SureCall’s Fusion 5 X is designed for use inside commercial buildings and large residences up to 20,000 square feet. SureCall Fusion 5X increases voice, text and 4G LTE signals for all carriers in US America. It is configurable for all indoor environments. It reduces dropped & missed calls and improves 4G LTE data speeds to ensure everyone has a reliable connection to their mobile device. Fusion 5-X (MSRP $1,699) fills the gap between the Fusion5s (up to 6,000 sq. ft.) and the Force5 (25,000+ sq. ft.) and is the first SureCall cell booster that does not feature attenuation knobs. Instead, sophisticated software automatically and continually optimizes gain ensuring the booster is always operating at maximum performance. Sure Call Fusion-5X kits include 4 internal antennas which provide the flexibility to customize your installation to meet the needs of any large building or challenging floor plan.
Features:
- 5 band amplifier with maximum gain, uplink and downlink power.
- Low signal loss SureCall 400 coax cable.
- LED indicator lights to assist with installation.
- Compatible with the Sentry Remote Monitoring System.
Two legacy Fusion-5X kit configurations:
- SC-Poly5X-72-OD4-Kit: Outdoor Omni Antenna, 4 Indoor Omni Dome Antennae.
- SC-Poly5X-72-OP4-Kit: Outdoor Omni antenna, 4 Indoor Directional Panel Antennae.
Due to popular demand, two new Fusion 5X custom SignalBooster.com kit configurations available:
- SC-Poly5X-72-YD4-Kit: Outdoor Yagi Antenna, 4 Indoor Omni Dome Antennae.
- SC-Poly5X-72-YP4-Kit: Outdoor Yagi antenna, 4 Indoor Directional Panel Antennae.
Product Specifications.
| Uplink Frequency Range (MHz): | 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included) |
| Downlink Frequency Range (MHz): | 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included) |
| Supported Standards: | CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards |
| Input/Output Impedance: | 50 Ohm |
| Maximum Gain: | 72 dB |
| Noise Figure: | 8 dB |
| VSWR: | ≤2.0 |
| AC Input: | Input AC 110 V, 60 Hz / Output DC 12 V |
| Maximum Output Power: | 1 Watt EIRP |
| Downlink Power: | 10 dBm |
| Cable: | SC-400 |
| RF Connectors: | N-Female (both ends) |
| Power Consumption: | <25W |
| Dimensions: | 9.25" x 6.375" x 1.375" |
| Weight: | 4 lb. 4 oz. |
| SureCall Fusion5x Bands and Frequencies. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FREQUENCY | BAND 17 | 700 MHz | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BAND 13 | 700 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BAND 5 | 850 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BAND 4 | 1700/2100 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BAND 25/2 | 1900 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alternate Part #'s (USA):
- SC-Poly5X-72
- SCPoly5X72
- Poly5X-72
- Poly5X72
- Fusion4X or Fusion 4X (previous version).
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
I have a remote cabin in Alaska and I have no cell signal at the cabin itself. I am just 3 to 5 earth miles or 500 feet of elevation away from good cell coverage. Is there a product that will work for this application.
If possible you may want to check from the roof where the outside antenna would be placed and see if you can get any type of signal.
The problem is if there is no signal at the donor antenna, it can't create a signal so a booster would not work. That goes for any type of booster. They work by amplifying an existing signal.
Usually the higher up you go, the more signal you can pick up. You can always order one (this SureCall Fusion 5X will work) and do a soft install.
There needs to be some signal outside cabin but that is after you place the Yagi antenna pointed to nearest cell tower. That yagi antenna should bring some signal outside the cabin from the cell tower.
In case the signal is just not strong enough to amplify or if it does not work, then you can return for refund under our 60 days money back guarantee.
Data Sheet / User Guide
Data Sheet
User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
