Description
Product Description

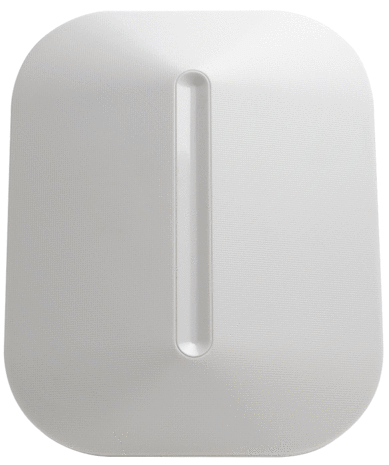

White Color Plastic Inside Panel Antenna (75 Ohm) | weBoost 314444 by Wilson Electronics / WilsonPro.
Home Inside Antenna with plastic cover is a proprietary indoor antenna made exclusively for weBoost Home boosters. It is noted for its sleek exterior, high performance, and intuitive wall-mount bracket.
With the included 3M Command Strips, the Home Inside Directional Antenna securely mounts to interior walls in a vertical or horizontal configuration. The antenna’s plastic housing allows for quick cleaning and maintenance. It also features a built-in kickstand for shelf placement.
Features:
Works on all worldwide cellular bands for voice and 4G data: LTE/ CDMA/ GSM/ UMTS/ AWS.
- High performance for cellular repeater-boosters.
- High gain signal output.
- Boost 698-960 and 1710-2700 MHz cellular frequencies.
- Designed for building interior installation.
- High efficiency and compact design.
- Boosts voice and data.
- Simple install kit with wall mount bracket and desk stand.
- 2-year warranty.
Please note that this kit is for signal amplifiers with interior antenna port of 75 Ohms impedance so please confirm this on your booster device or check its user guide/ manual to confirm. If you have a 50 Ohm cellular amplifier, simply check and choose from our 50 Ohms antenna expansion kits section.
White Panel Antenna Technical Specs.
| Model Number | 314444. |
|---|---|
| Frequency Band (MHz) | 698-806, 806-960, 1710-1880, 1900-2200, 2200-2700. |
| Peak Gain (dBi) | 5.75, 6, 7.3, 7.33, 7.62. |
| Efficiency (%) | 65.80, 63.34, 66.77, 55.19, 55.17. |
| Half-Power Azimuth Beamwidth (°) | 79, 72, 56, 51, 55. |
| Half-Power Elevation Beamwidth (°) | 87, 89, 86, 75, 48. |
| Front-to-Back Ratio (dB) | >10, >17, >15, >12. |
| VSWR | <1.5:1. |
| Polarization | Horizontal. |
| Impedance | 75 Ohm. |
| Maximum Input Power | 50 watts. |
| Antenna Type | Wide-Band Directional. |
| Connectors | F-Female. |
| Antenna Dimensions | 8.875 x 7.125 x 2.625 inches. |
| Antenna Shipping Dimensions | 11.5 x 7.83 x 3.5 inches. |
| Weight | 1.75 lbs. |
| Radiator Material | PCB & Aluminum. |
| Radome Material | Plastic-ChiMei PC 385. |
| UPC | 811815029991 |
RF Antenna Indoor Mounting Options:
Antenna Kit Contents:
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
