1/2 inch thick Plenum Air Coaxial Cable (priced per foot)
1/2 inch thick Plenum Air Coaxial Cable (priced per foot)
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: ICA12-50JPL
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Make An Offer
- Warning
Description
Product Description

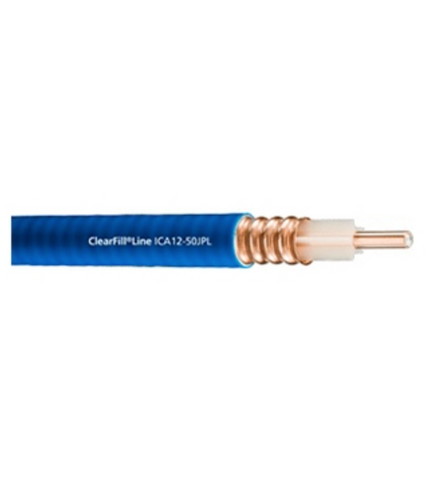

Half inch thick Plenum Air Coaxial Cable (priced per ft). This RFS ICA12-50JPL 1/2 inch plenum-rated coaxial cable features an air dielectric. This 50 Ohm coax cable has a blue jacket. This air dielectric cable has an annular corrugated copper outer conductor and copper-clad aluminum inner conductor. Maximum frequency capacity is 6.0 GHz. This transmission line uses 1/2 in standard connectors. It is available in bulk and is priced per foot.
These frequency signal transmitting coax cables are used in systems such as cell phone signal booster, repeater, distributed antenna system (DAS), bidirectional amplifier (BDA) systems, etc. to connect antennas with system components such as cellular amplifier main base unit. Trimming tool and cable connector not included with purchase. They must be purchased separately, as needed.
Please Note: This half an inch thick coax. cable is available in bulk and is priced per foot because it is sold by the foot. Therefore, after adding this item to cart, please update "quantity" in shopping cart based upon number of feet required.
ClearFill®Line 1/2" low loss air dielectric cable, Plenum-rated, CMP.
Not Eligible for free shipping
Features / Benefits:
- Supports Multiple RF Signals.
- Complete Shielding. The solid outer conductor of the ClearFill Line coaxial cable creates a continuous RFI/EMI shield that minimizes system interference.
- Outstanding Intermodulation Performance. RFS coaxial cable's solid inner and outer conductors virtually eliminate intermods. Intermodulation performance is also confirmed with state-of-the-art equipment at the RFS factory.
- Wide Range of Applications. Typical areas of application are feedlines for plenum-space installations within occupied buildings or structures but also suitable for outdoor use due to jacket UV rating.
Structure:
| Size | 1/2 Inch |
|---|---|
| Inner Conductor | 4.8 (mm); 0.19 (in) |
| Inner Conductor Material | Copper-Clad Aluminum Wire |
| Dielectric | 11.8 mm; 0.464 in |
| Dielectric Material | Extruded Polyethylene |
| Outer Conductor | 13.8 mm; 0.54 in |
| Outer Conductor Material | Corrugated Copper |
| Jacket | 15.93 mm; 0.627 in |
| Jacket Material | PVC, Plenum Rated / Color Blue UV rated to ASTM G155, Water-resistant |
| Cable Type | Air-Dielectric, Corrugated |
Testing and Environmental:
| Fire Performance | Flame Retardant, Plenum Rated |
|---|---|
| Flame Retardant Jacket Specifications | Meets/Exceeds Steiner Tunnel Test Method UL 910, NEC 820-53 (a) CMP, NFPA-262. |
| Regulatory Compliance | NEC Article 800 Communication Circuits; ETL Listed to UL444; Canadian CSA C.22.2/FT6 |
| Installation Temperature | -20 to 60 Degrees Centigrade; -4 to 140 Degrees Fahrenheit |
| Storage Temperature | -40 to 85 Degrees Centigrade; -40 to 185 Degrees Fahrenheit |
| Operation Temperature | -40 to 85 Degrees Centigrade; -40 to 185 Degrees Fahrenheit |
Electrical Specifications:
| Impedance | 50 +/- 1 Ohm |
|---|---|
| Maximum Frequency | 6 GHz |
| Velocity | 91 Percent |
| Capacitance | 76 pF/m; 23.2 pF/ft |
| Inductance | 0.19 uH/m; 0.058 uH/ft |
| Peak Power Rating | 40 kW |
| RF Peak Voltage | 2000 Volts |
| Jacket Spark | 8000 Volt RMS |
| Inner Conductor DC Resistance | 1.48 Ohm / 1000 m; 0.45 Ohm / 1000 ft |
| Outer Conductor DC Resistance | 1.9 Ohm / 1000 m; 0.58 Ohm / 1000 ft |
| Return Loss (VSWR) Performance | 24 (1.13) @ 698-960 MHz; 24 (1.13) @ 1395-1432 MHz; 24 (1.13) @ 1700-2155 MHz; 20 (1.22) @ 2300-2700 MHz; 18 (1.29) @ 3550-4200 MHz; 18 (1.29) @ 5150-6000 MHz |
Mechanical Specifications:
| Cable Weight, Nominal | 0.37 kg/m; 0.25 lb/ft |
|---|---|
| Minimum Bending Radius, Single Bend | 76 mm; 3 in |
| Minimum Bending Radius, Repeated Bends | 127 mm; 5 in |
| Bending Moment | 4.1 Nm; 3 lb-ft |
| Tensile Strength | 1112 N; 250 lb |
| Recommended / Maximum Clamp Spacing | 0.5 / 0.9 m; 1.8 / 3 ft |
| Crush Strength | 1.964 kg/mm; 110 lb/ln |
