1/2" Air Heliax Plenum Air Dielectric 50 Ohm Coax White Cable Per Foot

1/2" Air Heliax Plenum Air Dielectric 50 Ohm Coax White Cable Per Foot

Regular price $4.50 USD Sale price$3.75 USD

Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.

Free Lifetime Support. SKU / Model: AL4RPV-50

Call for FREE consultation:

1(855)846-2654

Need installation quote, or help with designing a custom solution? Submit a request for quote.

Description
Reviews
Questions & Answers
Make An Offer
Warning

Description

Product Description

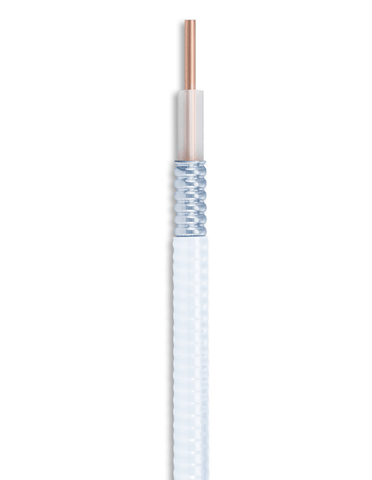

This is a half inch thick diameter Heliax Plenum Air Dielectric coaxial cable. It has off-white color. It has 50 Ohm impedance. It is sold by the foot. It is manufactured by Andrew antenna & wire company that is now owned by CommScope communication infrastructure company. Item name: HELIAX Plenum Rated Air Dielectric Coaxial Cable, corrugated aluminum, 1/2 inch, off-white color PVC jacket. SKU: AL4RPV-50.

These frequency signal transmitting coax cables are used in systems such as cell phone signal booster, repeater, distributed antenna system (DAS), bidirectional amplifier (BDA) systems, etc. to connect antennas with system components such as cellular amplifier main base unit. Prep tool and cable connector(s) not included with purchase. They must be purchased separately, as needed.

Please Note: This half an inch thick coax. cable is available in bulk and is priced per foot because it is sold by the foot. Therefore, after adding this item to cart, please update "quantity" in shopping cart based upon number of feet required.

General Specifications:

Flexibility	Standard.
Jacket Color	Off-white.

Dimensions:

Diameter Over Jacket	15.748 mm \| 0.62 in.
Inner Conductor OD	4.572 mm \| 0.18 in.
Outer Conductor OD	14.046 mm \| 0.553 in.
Nominal Size	1/2 inch.

Electrical Specifications:

Cable Impedance	50 ohm ±1 ohm.
Capacitance	75.459 pF/m \| 23 pF/ft.
dc Resistance, Inner Conductor	0.48 ohms/kft \| 1.575 ohms/km.
dc Resistance, Outer Conductor	0.48 ohms/kft \| 1.575 ohms/km.
dc Test Voltage	4000 V.
Inductance	0.19 µH/m \| 0.058 µH/ft.
Insulation Resistance	100000 MOhms-km.
Jacket Spark Test Voltage (rms)	5000 V.
Operating Frequency Band	1 – 6000 MHz.
Peak Power	40 kW.
Power Attenuation	2.325000047683716.
Pulse Reflection	0.5%.
Velocity	88 %.

Attenuation:

Frequency 1 MHz	Attenuation (dB/100 ft) = 0.066; Average Power (kW) = 35.37.
Frequency 1.5 MHz	Attenuation (dB/100 ft) = 0.081; Average Power (kW) = 28.84.
Frequency 2 MHz	Attenuation (dB/100 ft) = 0.093; Average Power (kW) = 24.95.
Frequency 10 MHz	Attenuation (dB/100 ft) = 0.211; Average Power (kW) = 11.04.
Frequency 20 MHz	Attenuation (dB/100 ft) = 0.300; Average Power (kW) = 7.75.
Frequency 30 MHz	Attenuation (dB/100 ft) = 0.370; Average Power (kW) = 6.29.
Frequency 50 MHz	Attenuation (dB/100 ft) = 0.482; Average Power (kW) = 4.83.
Frequency 85 MHz	Attenuation (dB/100 ft) = 0.636; Average Power (kW) = 3.66
Frequency 88 MHz	Attenuation (dB/100 ft) = 0.648; Average Power (kW) = 3.59.
Frequency 100 MHz	Attenuation (dB/100 ft) = 0.693; Average Power (kW) = 3.35.
Frequency 108 MHz	Attenuation (dB/100 ft) = 0.722; Average Power (kW) = 3.22.
Frequency 150 MHz	Attenuation (dB/100 ft) = 0.860; Average Power (kW) = 2.70.
Frequency 174 MHz	Attenuation (dB/100 ft) = 0.931; Average Power (kW) = 2.50.
Frequency 200 MHz	Attenuation (dB/100 ft) = 1.003; Average Power (kW) = 2.32.
Frequency 204 MHz	Attenuation (dB/100 ft) = 1.014; Average Power (kW) = 2.29.
Frequency 300 MHz	Attenuation (dB/100 ft) = 1.251; Average Power (kW) = 1.86.
Frequency 400 MHz	Attenuation (dB/100 ft) = 1.465; Average Power (kW) = 1.59.
Frequency 450 MHz	Attenuation (dB/100 ft) = 1.565; Average Power (kW) = 1.49.
Frequency 460 MHz	Attenuation (dB/100 ft) = 1.584; Average Power (kW) = 1.47.
Frequency 500 MHz	Attenuation (dB/100 ft) = 1.659; Average Power (kW) = 1.40.
Frequency 512 MHz	Attenuation (dB/100 ft) = 1.682; Average Power (kW) = 1.38.
Frequency 600 MHz	Attenuation (dB/100 ft) = 1.839; Average Power (kW) = 1.26.
Frequency 700 MHz	Attenuation (dB/100 ft) = 2.007; Average Power (kW) = 1.16.
Frequency 800 MHz	Attenuation (dB/100 ft) = 2.166; Average Power (kW) = 1.07.
Frequency 824 MHz	Attenuation (dB/100 ft) = 2.203; Average Power (kW) = 1.06.
Frequency 894 MHz	Attenuation (dB/100 ft) = 2.308; Average Power (kW) = 1.01.
Frequency 960 MHz	Attenuation (dB/100 ft) = 2.405; Average Power (kW) = 0.97.
Frequency 1000 MHz	Attenuation (dB/100 ft) = 2.463; Average Power (kW) = 0.94.
Frequency 1218 MHz	Attenuation (dB/100 ft) = 2.764; Average Power (kW) = 0.84.
Frequency 1250 MHz	Attenuation (dB/100 ft) = 2.806; Average Power (kW) = 0.83.
Frequency 1500 MHz	Attenuation (dB/100 ft) = 3.126; Average Power (kW) = 0.74.
Frequency 1700 MHz	Attenuation (dB/100 ft) = 3.369; Average Power (kW) = 0.69.
Frequency 1794 MHz	Attenuation (dB/100 ft) = 3.480; Average Power (kW) = 0.67.
Frequency 1800.0 MHz	Attenuation (dB/100 ft) = 3.487; Average Power (kW) = 0.67.
Frequency 2000 MHz	Attenuation (dB/100 ft) = 3.716; Average Power (kW) = 0.63.
Frequency 2100 MHz	Attenuation (dB/100 ft) = 3.828; Average Power (kW) = 0.61.
Frequency 2200 MHz	Attenuation (dB/100 ft) = 3.938; Average Power (kW) = 0.59.
Frequency 2300 MHz	Attenuation (dB/100 ft) = 4.046; Average Power (kW) = 0.57.
Frequency 2500 MHz	Attenuation (dB/100 ft) = 4.259; Average Power (kW) = 0.55.
Frequency 2700 MHz	Attenuation (dB/100 ft) = 4.467; Average Power (kW) = 0.52.
Frequency 3000 MHz	Attenuation (dB/100 ft) = 4.770; Average Power (kW) = 0.49.
Frequency 3400 MHz	Attenuation (dB/100 ft) = 5.159; Average Power (kW) = 0.45.
Frequency 3600 MHz	Attenuation (dB/100 ft) = 5.349; Average Power (kW) = 0.43.
Frequency 3700 MHz	Attenuation (dB/100 ft) = 5.443; Average Power (kW) = 0.43.
Frequency 3800 MHz	Attenuation (dB/100 ft) = 5.536; Average Power (kW) = 0.42.
Frequency 3900 MHz	Attenuation (dB/100 ft) = 5.628; Average Power (kW) = 0.41.
Frequency 4000 MHz	Attenuation (dB/100 ft) = 5.720; Average Power (kW) = 0.41.
Frequency 4100 MHz	Attenuation (dB/100 ft) = 5.811; Average Power (kW) = 0.40.
Frequency 4200 MHz	Attenuation (dB/100 ft) = 5.902; Average Power (kW) = 0.39.
Frequency 4300 MHz	Attenuation (dB/100 ft) = 5.991; Average Power (kW) = 0.39.
Frequency 4400 MHz	Attenuation (dB/100 ft) = 6.081; Average Power (kW) = 0.38.
Frequency 4500 MHz	Attenuation (dB/100 ft) = 6.169; Average Power (kW) = 0.38.
Frequency 4600 MHz	Attenuation (dB/100 ft) = 6.257; Average Power (kW) = 0.37.
Frequency 4700 MHz	Attenuation (dB/100 ft) = 6.345; Average Power (kW) = 0.37.
Frequency 4800 MHz	Attenuation (dB/100 ft) = 6.432; Average Power (kW) = 0.36.
Frequency 4900 MHz	Attenuation (dB/100 ft) = 6.519; Average Power (kW) = 0.36.
Frequency 5000 MHz	Attenuation (dB/100 ft) = 6.605; Average Power (kW) = 0.35.
Frequency 6000 MHz	Attenuation (dB/100 ft) = 7.443; Average Power (kW) = 0.31.

Return Loss & VSWR:

Frequency Band 700–894 MHz	VSWR = 1.25; Return Loss (dB) = 19.10
Frequency Band 806–960 MHz	VSWR = 1.25; Return Loss (dB) = 19.10
Frequency Band 1700–2200 MHz	VSWR = 1.25; Return Loss (dB) = 19.10

Material Specifications:

Dielectric Material	PE spline.
Jacket Material	PVC.
Inner Conductor Material	Copper-clad aluminum wire.
Outer Conductor Material	Corrugated aluminum.

Mechanical Specifications:

Minimum Bend Radius, multiple Bends	127 mm \| 5 in.
Minimum Bend Radius, Single Bend	63.5 mm \| 2.5 in.
Number of Bends, minimum	15.
Tensile Strength	79 kg \| 174.165 lb.
Bending Moment	6.779 N-m \| 5 ft lb.
Flat Plate Crush Strength	1.429 kg/mm \| 80 lb/in.

Environmental Specifications:

Installation temperature	-5 °C to +60 °C (+23 °F to +140 °F).
Operating Temperature	-20 °C to +85 °C (-4 °F to +185 °F).
Storage Temperature	-20 °C to +85 °C (-4 °F to +185 °F).
Attenuation, Ambient Temperature	20 °C \| 68 °F.
Average Power, Ambient Temperature	40 °C \| 104 °F.
Average Power, Inner Conductor Temperature	100 °C \| 212 °F.
Fire Retardancy Test Method	NFPA 262/CATVP/CMP.

Packaging and Weights:

Cable weight	0.208 kg/m \| 0.14 lb/ft.

Regulatory Compliance/Certifications:

c(ETL)us Certification	CATVP/CMP.
ETL Certification	CATVP/CMP.
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system.
