Red 1,000 feet 1/2 inch Plenum Heliax Air Dielectric Coax Cable
Red 1,000 feet 1/2 inch Plenum Heliax Air Dielectric Coax Cable
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: AFCAL4RPV-50R-1000
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Make An Offer
- Warning
Description
Product Description

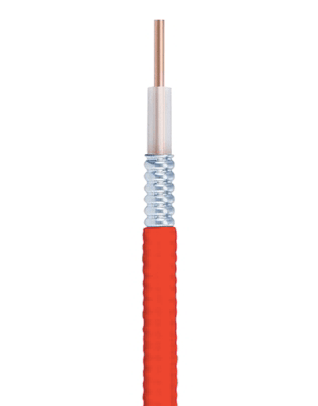

This plenum-rated 1/2 inch CommScope 1000 foot coaxial cable is constructed of corrugated aluminum and features an air dielectric. Housed in a red PVDF jacket, this Andrew AL4RPV cable's inner conductor is a copper-clad aluminum while the outer conductor is also aluminum.
Premium quality Plenum Rated Air Dielectric Coaxial Cable has corrugated aluminum. It is 1/2" thick with a red PVDF jacket. This is 50 Ohm impedance coax cable with aluminum outside conductor and a copper-clad aluminum-inner conductor. Its maximum frequency capacity is 6.0 GHz. This transmission line uses type N-male connector for 1/2" coax cables. No automated prep tool available for this air dielectric cable. This is a SignalBooster.com premium quality cable part with part number AL4RPV-50R-1000. It boasts least attenuation and highest stability backed by 10 years of manufacturer warranty of CommScope.
Construction Materials:
Jacket Material | PVC |
---|---|
Dielectric Material | PE spline |
Flexibility | Standard |
Inner Conductor Material | Copper-clad aluminum wire |
Jacket Color | Red |
Outer Conductor Material | Corrugated aluminum |
Dimensions:
Nominal Size | 1/2 inch |
---|---|
Cable Weight | 0.14 lb/ft |
Diameter Over Jacket | 0.620 inch |
Inner Conductor OD | 0.1800 inch |
Outer Conductor OD | 0.553 in. |
Electrical Specifications:
Cable Impedance | 50 ohm ±2 ohm |
---|---|
Capacitance | 23.0 pF/ft |
dc Resistance, Inner Conductor | 0.480 ohms/kft |
dc Resistance, Outer Conductor | 0.480 ohms/kft |
dc Test Voltage | 4000 V |
Inductance | 0.058 μH/ft |
Insulation Resistance | 100000 Mohms•km |
Jacket Spark Test Voltage (rms) | 5000 V |
Operating Frequency Band | 1 – 6000 MHz |
Peak Power | 40.0 kW |
Power Attenuation | 2.325 |
Pulse Reflection | 0.5% |
Velocity | 88% |
Environmental Specifications:
Installation Temperature | +23 °F to +140 °F |
---|---|
Operating Temperature | -4 °F to +185 °F |
Storage Temperature | -4 °F to +185 °F |
Mechanical Specifications:
Bending Moment | 6.8 N-m | 5.0 ft lb |
---|---|
Fire Retardancy Test Method | NFPA 262/ CATVP/ CMP |
Flat Plate Crush Strength | 80.0 lb/in. |
Minimum Bend Radius, Multiple Bends | 5.00 inches |
Minimum Bend Radius, Single Bend | 2.50 inches |
Number of Bends, minimum | 15 |
Tensile Strength | 175 lb |
Standard Conditions:
Attenuation, Ambient Temperature | 68 °F |
---|---|
Average Power, Ambient Temperature | 104 °F |
Average Power, Inner Conductor Temperature | 212 °F |
Return Loss/ VSWR:
Frequency Band / VSWR / Return Loss (dB) | 700–2200 MHz / 1.13 / 24.30 |
---|
Regulatory Compliance/ Certifications:
Agency: Classification | RoHS 2011/65/EU: Compliant |
---|---|
Agency: Classification | ISO 9001:2008: Designed, manufactured and/or distributed under this quality management system |
Agency: Classification | ETL Certification: ATVP/CMP |
Agency: Classification | c(ETL)us Certification: CATVP/CMP |
Average Power at Specific Frequencies:
Average Power @ 30 MHz | 6.33 kW |
---|---|
Average Power @ 50 MHz | 4.86 kW |
Average Power @ 450 MHz | 1.52 kW |
Average Power @ 800 MHz | 1.1 kW |
Average Power @ 894 MHz | 1.04 kW |
Average Power @ 960 MHz | 1 kW |
Attenuation per 100 ft. at Specific Frequencies:
Attenuation/100 ft @ 30 MHz | 0.367 dB |
---|---|
Attenuation/100 ft @ 50 MHz | 0.478 dB |
Attenuation/100 ft @ 150 MHz | 0.848 dB |
Attenuation/100 ft @ 450 MHz | 1.53 dB |
Attenuation/100 ft @ 824 MHz | 2.14 dB |
Attenuation/100 ft @ 894 MHz | 2.24 dB |
Attenuation/100 ft @ 960 MHz | 2.332 dB |
Attenuation/100 ft @ 1700 MHz | 3.24 dB |
Attenuation/100 ft @ 2.0 GHz | 3.564 dB |
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Data Sheet / User Guide
Make An Offer
Warning
