Wilson Pro 70 465134 (50 Ohm) Heavy Duty Signal Booster Kit
Wilson Pro 70 465134 (50 Ohm) Heavy Duty Signal Booster Kit
Buy Now, Pay Later with No Interest if paid in full within 6-12 months. Choose Klarna payment option at the checkout for details of this, and other long-term low-interest financing options.
Free Lifetime Support. SKU / Model: 465134
Suggested accessory - Mounting Pole: Over 50 percent off on Antenna Mounting Pole to help mount exterior antenna (automatically discounted in shopping cart after adding this kit).
- Sold as a complete cell phone signal booster kit with all required parts.
- Boost in-building coverage up to 15k sq. ft. using this single unit.
- Digital display to view automatic gain control.
- 5 Band amplifier boosts signals of all cell providers in USA.
- Up to +70 dB Gain antenna booster.
- Expand cellular coverage to more spaces indoors by purchasing additional 1, 2, or 3 Dome and/or Panel inside antenna kits (50 Ohm) that include required cables and splitter to connect to this 50 Ohm booster kit.
1(855)846-2654
Need installation quote, or help with designing a custom solution? Submit a request for quote.
- Description
- Reviews
- Questions & Answers
- Data Sheet / User Guide
- Make An Offer
- Warning
Description
Product Description
Wilson Electronics Pro 70 (50 Ohm) with part # Wilson 465134/ wa465134 is a signal booster that can be used to amplify network signals in homes, small businesses, and other areas that are prone to dropped calls, poor voice quality, and other problems that result from poor coverage. Works for all carriers in USA & Canada.
5G Ready - Per manufacturer, this WilsonPro cell phone booster will work for the next decade and beyond.
Wilson Pro 70 heavy duty commercial cell phone signal booster kit is the most affordable in the current lineup of signal boosters provided by Wilson Electronics. It is also referred to, as weBoost Pro 70. WilsonPro 70 is designed, engineered, and assembled in USA by Wilson Electronics/ weBoost.
This Wilson communication cell booster kit weBoost Pro70 is designed to work with all USA carrier networks including Verizon Wireless, AT&T, Sprint, T-Mobile. Wilson Pro70 amplifier provides boosted signal for up to 15,000 square feet. Packaged with a professional grade kit that features N-type connectors and Wilson 400 coax cable.
With up to 70 dB worth of gain to increase your service speed and area, this industrial-type commercial grade booster and repeater provides reliable voice and data coverage in any building where network signals may have issues penetrating due to the presence of signal blocking materials such as concrete and steel. Built-in technology also prevents it from interfering with cell towers and other devices so there should be no problems integrating it with your existing technology.
WilsonPro 70 amplifier is self-optimized, meaning that there is no need for interference or management once it has been installed. It is FCC certified, compatible with all North American networks, and expansion kits allow for easy customization of your setup at a later time. Installers will find that it is quite simple to set up, after which the software does most of the work.
This signal booster kit comes fully packaged with an amplifier, antennas, surge protectors, cables, and a power supply. It can work with signals up to +10dB stronger than its standard before shutting down. Once the signal decreases, it will restart on its own. This makes it an energy saver, as well as solves the problem with most other boosters which can only be powered back on by the installer going back to the site. Most importantly, the 50 Ohm Pro-70 constantly makes adjustments to its own configurations based on the fluctuations of the signals around it. It functions on frequency bands 12/17, 13, 5, 4, and 2.

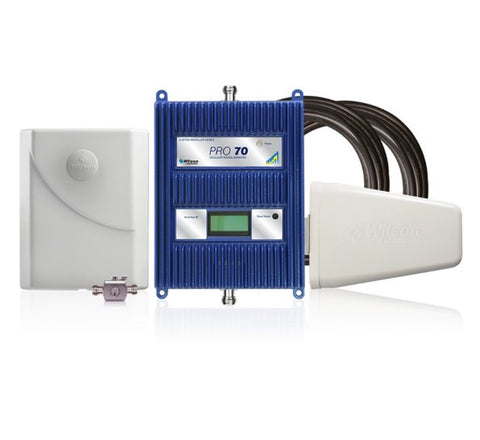

Wilson Pro 70 Kit (Exterior Yagi/ LPDA & Interior Panel Kit # 465134) Includes:
- 465034, Signal Amplifier Base (Model Number: U465034).
- 314411, Wide Band Directional Antenna.
- 311135, Wide Band Panel Antenna.
- 859902, Lightning Surge Protector.
- 952302, 2 feet Low-Loss Wilson 400 Cable.
- 952360, 60 feet Low-Loss Wilson 400 Cable.
- 952375, 75 feet Low-Loss Wilson 400 Cable.
- 859900, 120 volts AC Power Supply.
Wilson Pro 70 Kit (Exterior Omni & Interior Dome Kit # 465134-OMNI/DOME) Includes:
- 465034, Signal Amplifier Base (Model Number: U465034).
- 304424, Wide Band Omni Antenna.
- 304412, Wide Band Dome Antenna.
- 859902, Lightning Surge Protector.
- 952302, 2 feet Low-Loss Wilson 400 Cable.
- 952360, 60 feet Low-Loss Wilson 400 Cable.
- 952375, 75 feet Low-Loss Wilson 400 Cable.
- 859900, 120 volts AC Power Supply.
Optional cable purchase (not required):
Kit includes Type 400 cables: 2 ft. cable for connecting included lightning surge protector, 75 ft. and 60 ft. cables for connecting interior and exterior antennas (interchangeable). For peak performance, always use shortest cables possible for least signal loss. Therefore, if different size cable needed, buy different size Black LMR400 cable(s) or White LMR400 cable(s) separately.
Wilson 465134 pro 70 reseller cell phone booster kit (N-type 50 ohm) is ideal for dealers that provide installation and resellers that install commercial grade kits. This commercial grade, Wilson 465134 Pro 70 Reseller Cell Phone Booster Kit comes complete with N-type connectors and standard 50 Ohm cables. The Pro 70 commercial cell phone signal booster kit is delivered with everything needed for fast installation on client sites up to 15,000 square feet.
Now marketed under the ‘weBoost’ brand name, the Wilson signal booster range continues to lead the market in advanced home, office and industrial signal boosters. This Wilson Pro 70 kit is quick and easy to install. The amplifier even has a real-time, self-optimizing microprocessor and a graphic signal strength meter. Both features simplify installation and reduce your time on-site.
Designed for compatibility with all American carriers, Wilson Pro 70 signal boosters significantly improve 2G, 3G, 4G LTE and data coverage inside problem buildings. In some cases signal gain can be improved by +70db. This means faster data transfers, less dropped calls and extended cell phone battery life for your clients. Microprocessor control of overpowering and shutdown also makes a Wilson booster easy to manage. The Wilson 465134 amplifier adjusts automatically to changing signal strength, without having to re-power the system.
The Wilson Pro 70 Cell Phone Booster Kit is only available to Wilson resellers and certified installers. Even with its advanced technical features, the Wilson 465134 amplifier, antenna and 50 Ohm cable kit is an incredibly affordable package for a large residence, office or small business.
Not available online – please call to place an order for fast, next day shipping.
Wilson Pro 70 465134 Features:
- Complete ready-to-install kit.
- Self-optimizing for fast installation.
- Built in graphic signal strength meter.
- Dependable, automatic operation.
- Compatible with all US networks.
- Certified by FCC.
- 60 Day money back guarantee.
- 3 Year warranty.
User benefits of WilsonPro 70 Part # Wilson 465134:
- Amplifies weak cell phone signals.
- Significantly improves indoor cell phone use.
- Faster cell phone data transfers.
- Fewer dropped calls.
- Extends cell phone battery life.
Specifications of Wilson Pro 70 465134 Signal Amplifier:
| Model Number | 465134 | |
| Frequency | Band 12/17 | 700 MHz |
| Band 13 | 700 MHz | |
| Band 5 | 850 MHz | |
| Band 4 | 1700/2100 MHz | |
| Band 2 | 1900 MHz | |
| Max Gain | 70 dB | |
| Power Req | AC/DC 12 V / 3 A | |
| Connectors | N-Female | |
| Dimensions | 8.875 x 6.0 x 1.5 in / 22.5 x 15.2 x 3.8 cm |
|
| Weight | 2.81 lbs / 1.27 kg | |
Note: Works with all Carriers in USA & Canada. If ordering to be shipped to Canada, Canadian version (465134F) of this kit will be shipped.
Wilson Pro 70 465134 (50 Ohm) Installation Service by Certified Installers.
Installing this business grade cell phone signal booster kit (WIL-465134) requires prior planning and system design. Professional installation needs to be performed by a certified installer. We have installed WilsonPro 70 465134 signal amplifiers in large buildings and in various architecturally different commercial and residential properties. Please contact us to install Wilson PRO70 465134 by experienced cell phone signal booster installers at an affordable cost.
Reviews
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
Can it do all the cell phone carriers simultaneously or only one at a time?
It boosts signals of all Carriers at the same time. Thus, it is called Carrier-agnostic cell signal booster kit.
-
What is the difference between the 50 ohm and 75 ohm units sold.. Is it just the cabling? Wondering which unit i need?
Yes, only the cabling and antennas are 75 Ohm or 50 Ohm impedance depending on the kit you choose to buy. If you plan to use pre-existing 75 Ohm cabling with F connectors typically pre-installed in homes, then you can buy the 75 Ohm version to make it convenient to install. If not, we suggest you buy 50 Ohm version because it incurs less signal loss per foot of cable.
-
How many devices can this handle at the same time and still retain good amplification?
There's no set limit of number of devices because all devices within its coverage area will receiver stronger reception. Amount of coverage area indoor will vary though, depending upon strength of signal outside. Better the signal outside, you will get larger indoor coverage area that will receive stronger reception.
-
What is the return policy if the device doesn't boost the cell properly?
SignalBooster.com offers 60 days money back guarantee if the device does not boost cell reception adequately as expected.
Here's the policy if you wish to read it: https://www.signalbooster.com/pages/shipping-returns -
In the Wilson Pro 70 E911 compatible
FCC.gov website states: E911 systems automatically provide a 911 caller's call back number to emergency service personnel and, in most cases, location information. When you use a signal booster to complete a call to 911, this location information may not be provided or may be inaccurate.
Data Sheet / User Guide
Data Sheet
User Guide
Make An Offer
Warning
Note: For any signal booster to help, outside signal strength must be at least -110 dB or there must be a clear line of sight to a cell tower that is within twenty miles. Before ordering, please check outside signal level in decibels or ensure that you can make and hold a phone call at any good spot outside where you can mount an exterior antenna. Square footage stated in signal booster listings is based on good signal outside. If it is any weaker, the boosted sq. ft. area will be considerably lower, accordingly.
Kevin K. of Anderson, California gave the following review:
Website is easy to use with plain straight forward info but could have had more on testing signal strength to make sure you get a strong enough booster.
Therefore, please note that stated sq. ft. coverage is based on good signal outside. For best results: If outside signal is weak, we suggest choosing the next higher sq. ft. coverage kit. If outside signal is very weak, we suggest choosing the kit with even more higher sq. ft. range bracket. Basically, higher the sq. ft. bracket, the more powerful the signal amplifier with greater Gain as well as higher uplink and downlink output power.
If outside signal is too weak (weaker than -110 dB), submit request for cell coverage solution assessment. Upon receipt of questionnaire, we will perform residential or business site survey. This will help us determine the system that is needed to improve cell coverage. Then, we will create system design using that system such as femtocell, active or hybrid distributed antenna system (DAS), or other carrier feed signal enhancing method available that will work at your signal-challenged location. Finally, we will schedule for installation after equipment and installation service quote has been approved by you, or your company.
For non installation-included kits: Most home / office / building cell signal booster kits only include bracket to mount exterior antenna on outside wall, edge of roof, or existing pipe up to 2 inches in diameter. Mounting pole not included with most kits, unless stated specifically that it is included for free. Therefore, a mounting post must be purchased separately if you will require it to mount exterior antenna.
